Neodymium NdFeB Deep Pot Bi-Pole Magnets-Threaded Hole

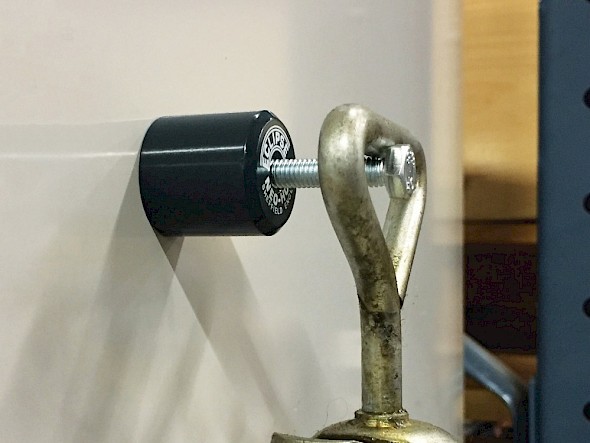

Strong pot magnet with threaded hole for attaching components

  • Aluminium pot with mild steel pole pieces
  • N35 grade nickel plated magnet material
  • 80°C max operating temperature
  • Ideal for clamping applications

Overview - Neodymium NdFeB Deep Pot Bi-Pole Magnets-Threaded Hole

Neodymium NdFeB Bi-Pole Deep Pot Magnet / Twin Pole Blind Ended Deep Pot Magnet

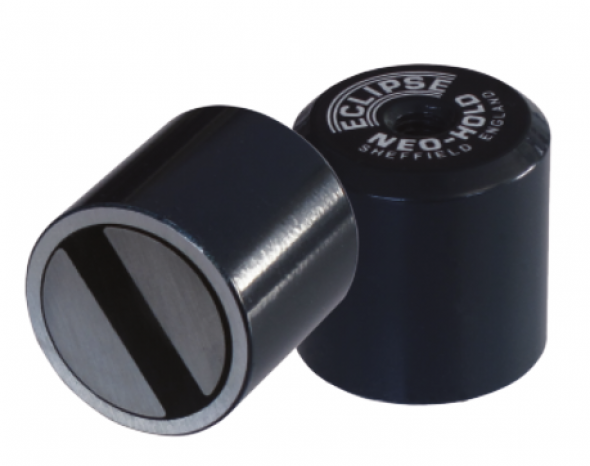

The bi-pole deep pot magnet and twin pole blind ended deep pot magnet are variants of a similar design theme. The outer casing is aluminium or brass (i.e. non-magnetic). There are two mild steel pole pieces (circular segment shaped) with a magnet between the mild steel poles. Bi-pole and twin pole are interchangeable names for this style of pot magnet.

The deep pot versions of the bi-pole or twin pole pot magnets either have a threaded hole at the back or they are blind-ended (no threaded hole or any other form of fixing). Press fitment is usually performed on the blind ended versions). The Neodymium (rare earth) or NdFeB bi-pole deep pot magnet and NdFeB twin pole blind ended deep pot magnet versions are rated to a maximum operating temperature of +80 degrees C. I

Model Variations

Product NumberDiameter (mm)Height (mm)Thread size (mm)Weight (g)Pull force (kg)Units per pack
NH02512.712M5102.510
NH0651616M618810
NH13022.220M640165
NH24025.425M670255
