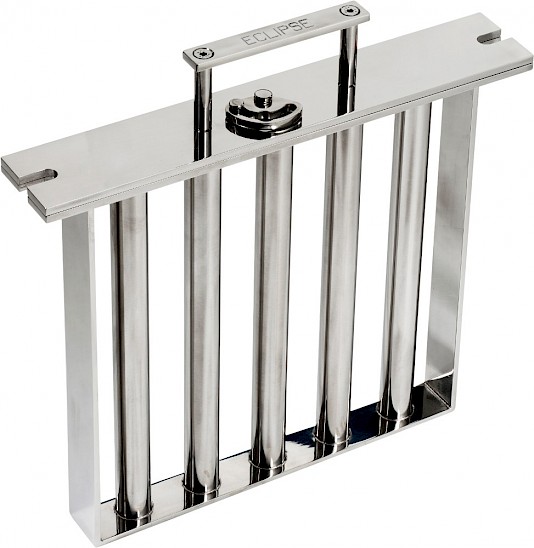

Easy-Clean Magnetic Grid Separator

Removes ferrous particles from powders and granulates

  • High-intensity magnetic grid extracts fine particles
  • Includes easy-clean mechanism
  • Easily installed into existing chute work
  • Multiple sizes available
  • ATEX version available

Overview - Easy-Clean Magnetic Grid Separator

Easy-clean solution for removing fine ferrous contamination

Our versatile, easy-clean grid magnets can be used in most powder and granulate applications.

The magnetic separator grid can pick up all contamination down to sub-micron size. Its cleaning process is quick and easy; simply pull the magnetic cores out of the stainless steel tube and the contamination will fall away.  The cleaning process can be completed in under 15 seconds, making the magnetic separator grid ideal for 24/7 operations where downtime must be kept to a minimum.

Our easy-clean magnetic separator grid can be installed into existing chute work, or machinery where height is restricted. It can also be supplied in housings for ease of installation into existing process lines.

Applications
Suitable for dry powders, granulates and liquids
Can be installed to any vertical or slightly angled process line

Benefits
Simple to install and clean
Reduces 'spark' risk
Removes micron-sized contaminants
Meets audit requirements
Ideal for 24/7 operations, reduces downtime

Performance
Magnetic performance: 7000, 9000 and 10000 gauss
Performance reading: On tube surface
Magnet grade: N35 & N45 - Inspected and confirmed via hysterograph prior to use
Temperature: -4°F / +194°F  (-20°C / +90°C)

Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeB)
Tubing: 316-grade stainless steel
Other Parts: 316-grade stainless steel
Surface Finish: Polished to 0.6μm

For multi row magnetic grids see Easy-Clean Housed Grid
