High-Intensity Liquid Filter/Separator

Ideal for installing on pressurized transfer lines, providing protection against ferrous contamination

  • Extracts fine-particle ferrous contamination
  • Ideal for liquids of all viscosities eg juice, syrups, chocolate, pastes
  • Single wall or double wall (jacketed) versions available
  • Available in several sizes to suit the application
  • ATEX approved version available

Overview - High-Intensity Liquid Filter/Separator

Removes fine ferrous contamination from liquid and food processes

The high-intensity liquid filter magnetic separator has been designed to operate in pressurized transfer lines to provide protection against ferrous and paramagnetic contamination.

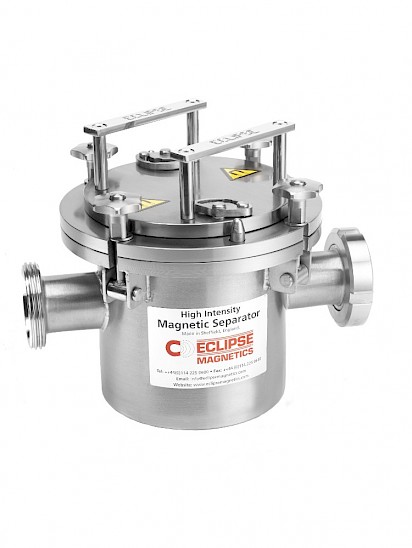

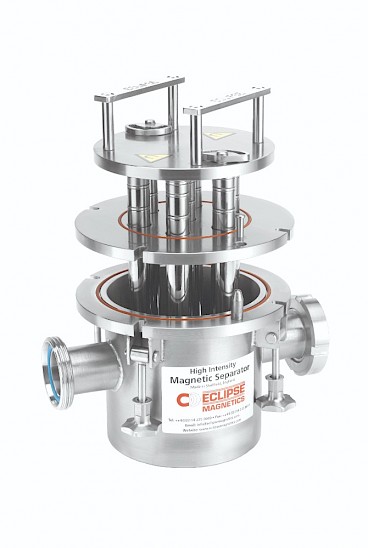

The housing comprises a vessel, magnetic lid assembly and band clamp, which secures the unit together. The filter is available in two versions, single wall and double wall (jacketed for heated pipelines).

The filter can be used in any line that processes liquids at all viscosity levels, and can be installed at any angle from vertical to horizontal. A common installation location is at tanker loading and discharge to inspect outgoing and incoming materials.

The filter can be supplied to suit various processing volumes, pressures, temperatures and specifications.

Suitable for liquid and food processes such as chocolate, molasses, jam, syrup, juice, sauce, pastes, soup, pickles, spread, beverages
Can be installed all locations either vertically, horizontally or angled

Easy to clean and install
Meets audit requirement
Removes sub-micron sized contaminants
No consumables

Magnetic performance: 7000, 9000, 10000 (Easy Clean), 11000 and 12000 Gauss (Fixed)
Performance reading: On tube surface
Magnet grade N35 & N45 – Inspected and confirmed via hysterograph prior to use
Temperature: -4°F / +194°F (-20°C / +90°C)
Pressure: +87 psi (+6.0 bar)

Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeb)
Housing: 316-grade stainless steel
Tubing: 316-grade stainless steel
Other Parts: 304-grade stainless steel
Sealing: Silicone rubber O-ring
Surface Finish: Brushed internally | Polished externally to Ra 1.2μm

For starch applications see Rota-Grid Separator
