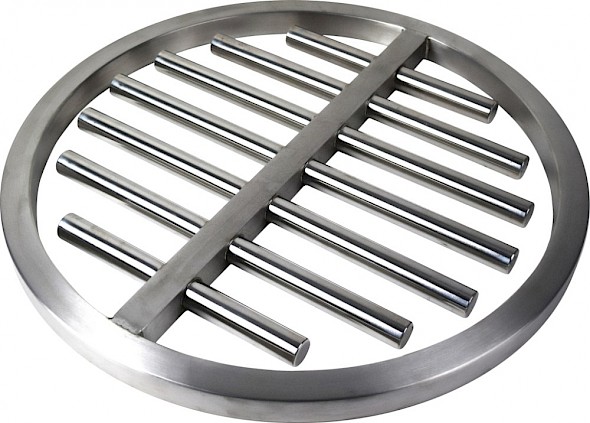

Magnetic Grids for Sieves

Drop-in replacements for standard vibratory sieves

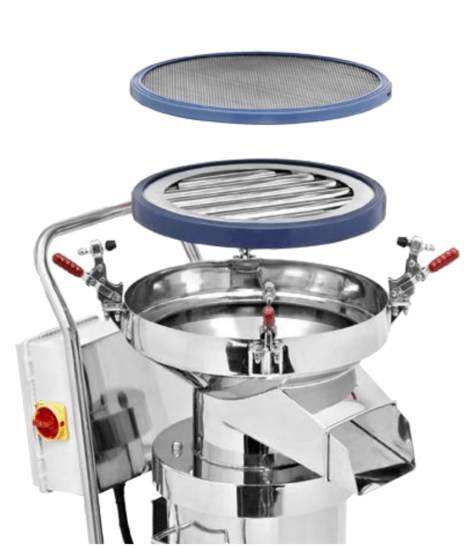

  • Position beneath the sieve screen for extra protection
  • High-intensity magnetic field extracts fine ferrous particles
  • Available with metal detectable silicon rubber seal
  • ATEX approved versions available

Overview - Magnetic Grids for Sieves

Added protection for vibratory sieves

Direct drop-in fit to Russell Finex Compact & Farley Greene Sievmaster Models.

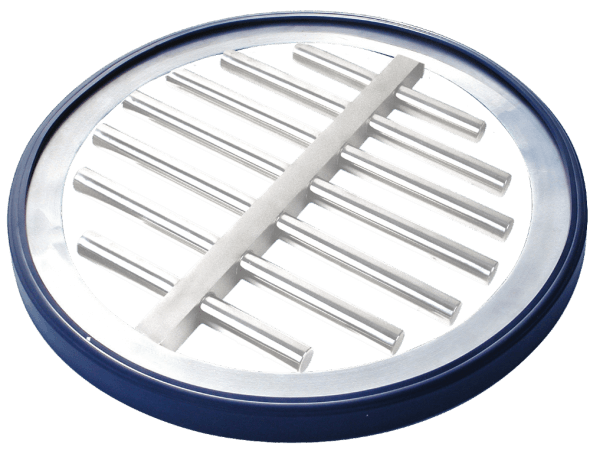

Available with metal detectable seal which is made by patented rubber material unique to Eclipse Magnetics. This allows for easy detection in case of breakage due to excessive sieve wear.

Seal, screen and screen seals are available separately to fit in your current sieve.  The full stainless steel construction makes it ideal for use in applications that have demanding hygiene standards.

For maximum safety during handling special carrying cases are also available.

Installation location:

Post-sieve screen for dry powders including flour and granulates.

Benefits
• Easy to clean
• Reduces 'spark' risk
• Meet audit requirements
• Removes fine particle ferrous contaminants
• Protect against screen wear and failure
• Feature strong rare earth magnets either 7,000 gauss or Super-High strength 11,000 gauss.
• Static dissipative all-metal construction

For gravity feed separation see Easy Clean Housed Grids
