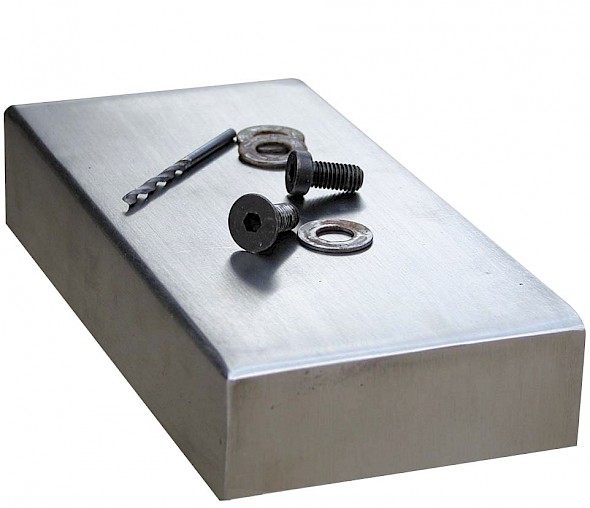

Magnetic Strip Separator

High-intensity magnetic fields extracts tramp metal contamination

  • For installation above transfer conveyors or vibratory feeders
  • Permanent magnet no power source required
  • Cost-effective option for removing tramp primary contamination e.g. nuts, bolts, screws
  • Various size options available

Overview - Magnetic Strip Separator

High-intensity magnetic separator extracts tramp metal objects

Rare Earth strip magnets capable of attracting high quantities of contamination.

This unit is very versatile and can be used in various processes. The Rare Earth Neodymium strip magnets are usually installed above transfer conveyors and vibratory feeders to attract 'tramp' type contamination and any loose machinery that has fallen off during the manufacturing or packaging stages.

The unit consists of two rows of magnetic material running the full length of the unit. These generate high-intensity magnetic flux fields, which reach approximately 3.5 inches (85mm) from the front face of the unit. Magnetism is only present on one face, ensuring that no surrounding sensitive process machinery is affected. 'Tramp' contamination can be attracted from the conveyor surface even when trapped underneath the product.

Applications
Suitable for all conveyed products less than 3.5 inches (85mm) thick
Can be installed above transfer belt conveyors and vibratory feeders

Benefits
Suitable for wash down
Easy to clean and install
High collection of contamination capacity
Rare Earth deep magnetic field

Performance
Magnetic Performance: 4000 Gauss
Performance Reading: On the magnetic front face
Magnet Field Depth: 3.5 inches - Using 0.19 inches Ø 0.98 inches (85mm - Using 5mm Ø 25mm) long mild steel test piece
Magnet Grade: N35 - Inspected and confirmed via hysterograph prior to use
Temperature: -4°F/+194°F (-20°C/+90°C)
Pressure + 87 psi (6.0 bar)

Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeB)
Housing: 304-grade stainless steel
Surface: Finish Brushed
