Home / Stock Magnets & Tools / Ceramic Shallow Pot Magnets with Hook

Ferrite Shallow Pot Magnets with Hook design

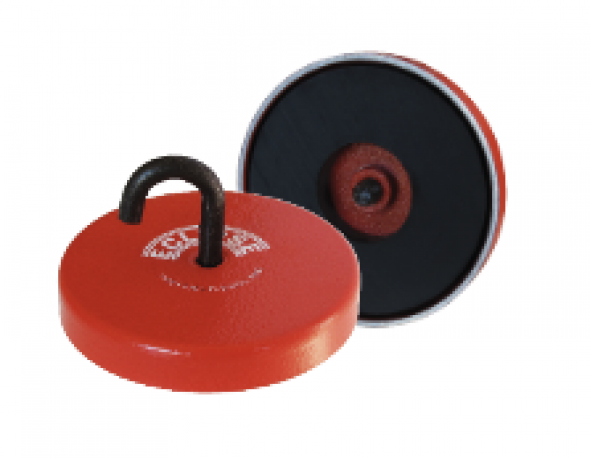

Ceramic Shallow Pot Magnets with Hook

Max operating temperature 248°F (120°C)
Mild steel pot
With removable hook or removable jack option
Typical Applications: For height-restricted applications, light lifting, holding, securing and clamping

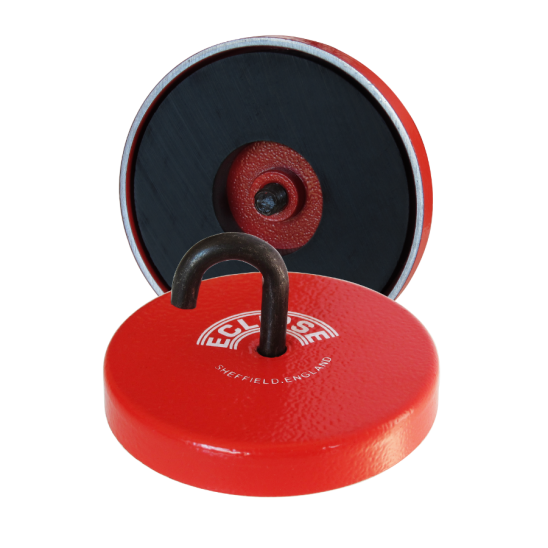

Part numbers E890, E891, E892 with hook

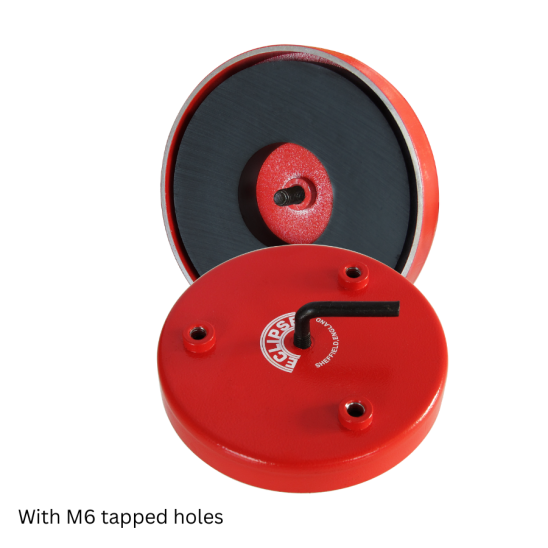

Part numbers E895, E896, E897 with jack

Download Heritage Range Brochure

Get a quote

Technical Data

Download Heritage Range Brochure

Model Variations

Product Number	Diameter	Thickness	Thread	Pull Force	Units Per Pack
E890	1.811" (46mm)	0.421" (10.7mm)	M6	13.2lbs (6kg)	5
E891	2.205" (56mm)	0.421" (10.7mm)	M6	35.2lbs (16kg)	5
E892	2.598" (66mm)	0.421" (10.7mm)	M6	55lbs (25kg)	5
E895	2.598" (66mm)	0.421" (10.7mm)	55lbs (25kg)	1.811"-3 holes (46mm-3 holes)	M6	1
E896	2.992" (76mm)	0.492" (12.5mm)	73lbs (33kg)	1.811"-3 holes (46mm-3 holes)	M6	1
E897	3.397" (100mm)	0.590" (15.5mm)	121lbs (55kg)	2.756"-3 holes (70mm-3 holes)	M6	1
