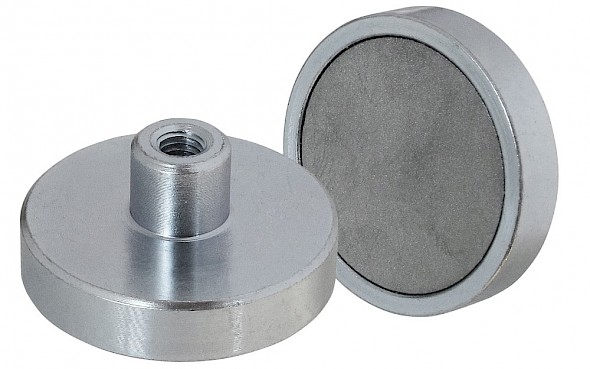

Samarium Cobalt Shallow Pot Magnet with Thread

For easy fixing or attaching components with a screw or bolt

  • 392°F (200°C) maximum operating temperature
  • Excellent resistance to corrosion
  • Mild steel pot with zinc plated body

Overview - Samarium Cobalt Shallow Pot Magnet with Thread

Internal Threaded Stud Pot Magnet / Female Threaded Stud Pot Magnet

The internal threaded stud pot magnet is also known as a female threaded stud pot magnet. They consist of a ferromagnetic mild steel cup containing a magnet (usually a disc magnet) with a ferromagnetic mild steel stud / boss / bush mounting at the back of the pot magnet into which a threaded hole has been made.

These pot magnets are known as female threaded stud pot magnets because the internal threaded hole could take pot magnets with threaded bar at the back (external threaded stud pot magnets / male threaded stud pot magnets) as well as bolts. Because the mild steel is stud / boss is threaded there is decent thread length allowing reasonably high torque to be applied to securely hold each pot magnet in place.

Samarium cobalt SmCo version of the internal threaded stud pot magnet can be used at temperatures up to +392°F (+200°C).

Model Variations

Product NumberDiameter (inches)Diameter (mm)Thickness (inches)Thickness (mm)Height (Inc. Thread) (inches)Height (Inc. Thread) (mm)ThreadFerrule Outer Dia. (inches)Ferule Outer Dia. (mm)Pull Force (lbs)Pull Force (kg)Units Per Pack
E7700.2460.184.50.4511.5M30.2461.10.520
E7710.3180.184.50.4511.5M30.2462.41.120
E7720.39100.184.50.4511.5M30.2464.42.020
E7730.51130.184.50.4511.5M30.2468.84.020
E7740.63160.184.50.4511.5M40.31813.26.020
E7750.79200.2460.5113M40.31819.89.010
E7760.98250.2870.5514M40.31833.115.010
E7771.26320.2870.6115.5M50.391048.522.05
