We produce magnetic solutions for all your needs

Eclipse Magnetics designs, produces and supplies magnets and magnetic assembly solutions to fulfill the wide ranging requirements and specifications for a huge range of applications across all industries.
Design, improve, optimise, supply, support.

Sensor Magnets

Eclipse Magnetics understands the needs of sensing or sensor applications where cutting edge magnetic assemblies are key to reducing weight, cost, false triggers and overall improving performance. Sensors are used in a wide range of industries and applications, in particular electronic circuits. Electromagnets and permanent magnets can be used to achieve contactless magnetic sensing applications (minimising wear), ferromagnetic materials can also be applied to pull or shield magnetic fields. Whether the application is for detecting fluid levels, detecting rotor position , measuring distances or speed or angle proximity, triggering switches or security we can help provide you with a contactless magnetic solution.

We can provide magnets for Reed Switches, Hall Effect Devices and Search Coils for sensor triggering applications. We offer methods to improve DoM angle by novel production and 100% inspection. We like to use mutual NDA.

We design to meet requirements of sensor applications for field strength versus distance profiles, temperature variation, slide by, slide through, rotation, magnetic shielding (e.g. vanes), etc. Our magnetic solutions for sensors include initiatives for weight reduction, miniaturisation, improved field pathways, cost reduction and even reduction of rare earth material use. Our China Joint Venture also allows us to supply our solutions with PPAP and C of C. With an unrivalled expertise in designing value adding magnetic solutions Eclipse Magnetics is a trusted partner for reliable long-term contract manufacturing supply. This includes holding stock in UK for guaranteed fast call off supply.

Sensor Magnet Application Examples Include:

  • Magnets for electric motor rotor position
  • Seat belt sensor magnets
  • Fuel level gauge magnets
  • Magnets for safety locks
  • Magnets for engine valve timings
  • Contactless temperature estimation magnets
  • Contactless position sensing magnets
  • Speed sensing magnets
Reed Switch Sensor Magnets

Reed Switch Sensor Magnets

We can look to assist you in matching magnets to Reed Switches. Reed Switches are rated in Ampere-turns which cannot easily be linked to a Gauss or Tesla value (because each electromagnet test coil used for the rating has a specific design). We can work with you to work out the required field strength to trigger the Reed Switch and then we can re-design a magnet to meet your application requirements (so, for example, the Reed Switch can be activated further away).

We can custom design magnets to give specific field strengths at specific positions for nearly any temperature. We can match custom magnets to existing Hall Effect devices and can design magnets to activate Reed Switches.

Direction of Magnetisation (DoM) measurement

Hall Effect Sensor Magnets

These have a Gauss or Tesla value to trigger and release. They are sometimes better than Reed Switches for use in custom applications.Gauss meters use Hall Effect devices to measure magnetic field strengths. We can produce magnets to meet field strengths at specific distances.

Power Generation Solutions

Eclipse Magnetics understands the needs of power generation customers to design commercially viable PM generator solutions that have reduced weight, high power density, compact design, longer service life, reduced cost and higher efficiency. This even includes Rare Earth free design replacements. Whether the application is for magnetically balancing rotors, designing out rare earth magnets using ferrite magnets, increasing power density by miniaturisation, enhanced flux concentration at the poles, designing pancake generators and canister generators, or reducing flux leakage, Eclipse Magnetics will help you achieve your solution.

We can magnetically balance the rotors (as well as mechanically balance the rotors) to give less back emf variation between phases to help simplify the power electronics circuitry. We like to use mutual NDA. We design to meet requirements for pull forces, torques, field strengths, temperature, sensor specifications, etc.

Our magnetic solutions include weight reduction, miniaturisation, higher efficiency, greater holding force, improved pull versus distance, cost reduction and even reduction of rare earth material use.We have Dr Ewan Goodier, an Electronic & Electrical Engineer with a PhD in the field of motor designs using magnets, to assist with your application design and technical support. Our manufacturing also allows us to supply our solutions with PPAP and C of C. We also offer methods to allow for better recyclability to help meet WEEE requirements.With an unrivalled expertise in designing value adding magnetic solutions , Eclipse Magnetics is a trusted partner for reliable long-term contract manufacturing supply. This includes holding stock in the UK for guaranteed fast call off supply.

Magnets and Magnetic Assemblies for Power Generation Applications Include:-

  • Permanent Magnet Generators
  • Regenerative braking systems
  • Battery chargers
  • Wind Turbines
  • Water Turbines
  • Heat energy reclaim generators
  • Linear & Rotary Generators
  • Alternators
  • Internal and External Rotor Assemblies
Principle of back emf (voltage) generation

Principle of back emf (voltage) generation

Faraday’s Law for back emf E generation is:-E = - N (dϕ/dt) shown as E = - NA (dB/dt)dϕ/dt is the lines of magnetic flux ϕ cutting through the coil over time t. But ϕ=BA so the magnetic field strength B in the coil changes with time for electricity generation (A is coil hole area). Lenz’s Law gives the minus sign.The back emf is an alternating voltage (a.c.). Rectification and smoothing is needed for d.c.

Examples Magnet Shapes available. We can custom produce magnets to nearly any shape to meet customer requirements. Factors affecting back emf generation. Number of turns – generated voltage is proportional to the number of turns per coil, N.Number of coils – more coils can mean more voltage if connected in correct sense in series (more N overall) but coil position relative to magnet position can introduce phase-shifted a.c. voltages (used for e.g. three phase a.c.).Number of Magnets – If the design can take more magnets then a coil may see more magnets per revolution passing by giving more changes in field per revolution giving a smaller dt hence a higher back emf for the same rotational speed.

But this may introduce electrical phases depending on the design.Magnet strength – a stronger magnetic field gives more field (B) in the coil. This can be achieved by stronger magnet grade or type (e.g. N45 instead of N35, NdFeB instead of Ferrite), flux concentration design, better magnetic pathways (less air gap), etc.Speed – faster rotation or movement means dt decreases resulting in a higher back emf.Losses – no design is 100% efficient - factors such as eddy current losses, heat, stray flux etc reduce efficiency. Use of thinner laminations can lower eddy current losses.Inductance – self inductance and mutual inductance affect magnetic performance.

Motors & Actuators

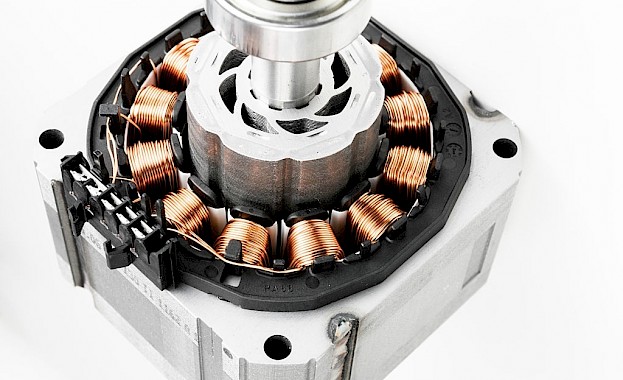

PM Electrical Machine Solutions

Eclipse Magnetics understands the needs of electrical machine, motor, drive and actuator customers to design commercially viable PM machine solutions that have any of reduced weight, higher power density, compact design, longer service life, reduced cost or higher efficiency. This even includes Rare Earth free design alternatives. We can help with carbon footprint reduction, Electricity Demand Reduction (EDR) and lowering CO2 emissions.

Whether the application is designing out rare earth magnets for ferrite replacements, increasing power density, miniaturisation, efficiency improvement, enhanced flux concentration at the poles, using external or internal rotors, temperature compensation, powdered iron use, eddy current reduction, torque ripple reduction, or energy demand reduction, Eclipse Magnetics will help you get your solution. We can even magnetically balance the rotor to even out back emf in each phase to simplify the power electronics.We like to use mutual NDA.

We can assist you to design for back emf, torque, field strengths, position sensing, weight reduction, miniaturisation, higher efficiency, cost reduction and even rare earth replacement.We have Dr Ewan Goodier, an Electronic & Electrical Engineer with a PhD in the field of motor designs that use magnets, to assist with your magnetic application design and technical support.Our China Joint Venture also allows us to supply our solutions with PPAP and C of C.We even offer methods to allow for better recyclability to help meet WEEE requirements.With an unrivalled expertise in designing value adding magnetic solutions Eclipse Magnetics is a trusted partner for reliable long-term contract manufacturing supply. This includes holding stock in UK for guaranteed fast call off supply.

Application examples include:

  • Permanent Magnet Motors
  • Magnets for Direct Drives
  • Magnets for Hybrid Drives
  • Internal Rotor Magnets
  • External Rotor Magnets
  • Stator Magnets
  • Magnets for Linear Actuators
  • Magnets for Servo Motors

Permanent Magnet Machine Assemblies: we can supply PM motor assemblies and sub-assemblies to customer design drawings. We also magnetically balance for multi-phase!



Magnetic Couplings

Eclipse Magnetics understands the needs of motor, machine, drive and magnetic pump coupling manufacturers to design commercially viable magnetic coupling solutions that have any of specific pull out torque, higher torque rating, torque through larger air gap, higher temperature operation, reduced weight, reduced cost or higher efficiency. This can include Rare Earth free and hybrid material designs. We use 3D magnetic FEA software.Whether the application is designing for higher temperature operation, increasing pull out torque, designing to prevent drive motor stall and burn out or size reduction, Eclipse Magnetics will help you get your solution. We can design canister and pancake magnetic coupling systems. Only magnetic fields couple the two sides of the magnetic coupling (there is no mechanical contact). If one side gets stuck (e.g. blocked pump flow) the other side is designed to slip (pull out torque rated) preventing costly damage of a motor burn out. We like to use mutual NDA.

We can assist you to design for torque, temperature, field strengths, position sensing, weight reduction, miniaturisation, higher efficiency, cost reduction and even rare earth replacement.We have Dr Ewan Goodier, an Electronic & Electrical Engineer with a PhD in the field of motor designs that use magnets, to assist with your application design and technical support. He has helped in the design of magnetic couplings for over ten years.Our China Joint Venture also allows us to supply our solutions with PPAP and C of C.We even offer methods to allow for better recyclability to help meet WEEE requirements.With an unrivalled expertise in designing value adding magnetic solutions, Eclipse Magnetics is a trusted partner for reliable long-term contract manufacturing supply. This includes holding stock in UK for guaranteed fast call off supply.

Application examples include:

  • Contactless magnetic drives
  • Magnetic Pump Couplings
  • High Torque drives
  • Motor burn out protection
  • Pancake couplings
  • Canister couplings

We can design magnets for assemblies and we can supply magnets and magnetic assemblies/sub-assemblies.



Magnetic Assemblies

Assembly Design Solutions

Whether the application is for a one off prototype through to mass production, Eclipse Magnetics will work with you to get the best magnetic product for your application. Whether you have a completed design and need a reliable long term supply partner, or you require design assistance and technical support, Eclipse Magnetics can assist you with your magnetic assemblies and sub-assemblies. We like to use mutual NDA. We design to meet requirements for example, pull forces, torques, field strengths, temperature, etc. Our magnetic solutions include weight reduction, miniaturisation, higher efficiency, greater holding force, improved pull versus distance, cost reduction and even reduction of rare earth magnet material use.

One off prototypes to mass production are all possible with us. Our manufacturing  also allows us to supply our solutions with PPAP and PSW available. Eclipse Magnetics understands the needs of our customers to design commercially viable product solutions that have reliable long term performance, reduced cost, higher efficiency and also reduced weight. We can supply all industries across the globe.Factors such as carbon footprint reduction, increased efficiency, better performance, miniaturisation, better recyclability and reduced cost is what we can help you achieve. With an unrivalled expertise in designing value adding magnetic solutions,  Eclipse Magnetics is a trusted partner for reliable long-term contract manufacturing supply. This includes holding stock in UK for guaranteed fast call off supply.

Application examples include:

  • Magnets for Motors, Drives, Machines, Actuators
  • Electromagnets
  • Magnets for Generators, Alternators, Turbines
  • Halbach arrays
  • Magnets for Pumps
  • Magnets for Security systems
  • Holding, Clamping and Lifting magnets
  • Magnets for Recycling Applications
  • Magnets for Lighting systems
  • Magnets for Loudspeakers
  • Magnets for Electronic products
  • Automotive magnets
  • Magnets for Aerospace products
  • Magnets for University R&D projects
  • Speed, position and angle sensor magnets

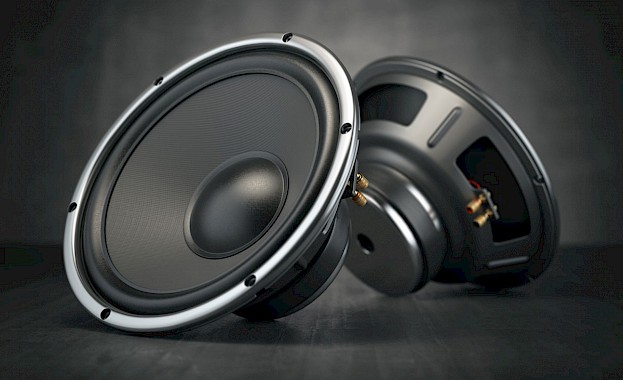

Acoustic Magnetic Design Solutions

High Performance Magnetic Assemblies and Materials for Audio Applications

Eclipse Magnetics understands the need for our customers to produce commercially viable, high performance audio products. To achieve this we work with your engineers and designers to provide the perfect solution for your magnetic assembly and material needs. We design the assembly to factor in, the coil space, air gap size, required magnet shape; we specify magnetic materials to fit your requirements. We can develop bespoke designs which fulfils your specifications.We like to use mutual NDA. We design to meet requirements for e.g. field strength in air gap, pole piece flux concentration, leakage reduction, temperature, etc. Our magnetic solutions include weight reduction, miniaturisation, higher efficiency, greater field strength, cost reduction and even reduction of rare earth material use. Our China Joint Venture also allows us to supply our solutions with PPAP and PSW available.

Automotive Magnet Design Solutions

Eclipse Magnetics understands the needs of automotive customers to design commercially viable product solutions that have reduced weight, reliable long term performance, lower emissions, reduced cost and higher efficiency. Whether the application is for sensing a crankshaft position, through to magnets to hold a headliner in place, through to magnets for use in linear actuators, Eclipse Magnetics can design, specify, produce samples, send for customer approval and then mass produce to meet your automotive requirements. We like to use mutual NDA.

We design to meet requirements for pull forces, torques, field strengths, shielding, temperature, sensor specifications, etc. Our magnetic solutions include weight reduction, miniaturisation, higher efficiency, greater holding force, improved pull versus distance, cost reduction and even reduction of rare earth material use. We have 3D FEA software to model magnetic systems to meet customer requirements eliminating the need for trial and error testing. Our manufacturing also allows us to supply our solutions to TS16949 with PPAP and PSW available. Carbon reduction and increased fuel efficiency by miniaturisation with the possibility of better recyclability is what we will help you achieve.With an unrivalled expertise in designing value adding magnetic solutions, Eclipse Magnetics is a trusted partner for reliable long-term contract manufacturing supply. This includes holding stock in UK for guaranteed fast call off supply.

Examples of Magnets used in Automotive Applications include:

  • Magnets for Hybrid drives
  • Magnets for Direct drives
  • Magnets for Linear actuators
  • Magnets for PM Generator rotor assemblies
  • Magnets for Position sensors
  • Magnets for Rotational angle sensors
  • Magnets for Speed sensors
  • Magnets for Power steering
  • Magnets for Electric vehicles
  • Loadspace magnets
  • Headliner magnets
  • Sun visor magnets
  • Glovebox magnets
  • Magnets for Loudspeakers
  • Magnets for Motors
  • Magnets for Generators, alternators

Aerospace Magnet Design Solutions

Eclipse Magnetics understands the needs of aerospace customers to design commercially viable product solutions that have reduced weight, flawless long term performance in the harshest conditions, longer service life, reduced cost and higher efficiency.Whether the application is for sensing an actuator position, using magnets to detect fluid flow rates, making magnetic fuel pumps, through to magnets for use in high temperature generators, Eclipse Magnetics can design, specify, produce samples, send for customer approval and then mass produce to meet your aerospace requirements.We like to use mutual NDA. We design to meet critical requirements for pull forces, torques, field strengths, temperature, sensor specifications, etc.

Our magnetic solutions include weight reduction, miniaturisation, higher efficiency, greater holding force, improved pull versus distance, cost reduction and even reduction of rare earth material use. We can supply our solutions with FAI and/or C of C. We can either assemble in UK or we can use our high quality China Joint Venture. Carbon reduction and increased fuel efficiency by miniaturisation with the possibility of better recyclability is what we will help you achieve.With an unrivalled expertise in designing value adding magnetic solutions Eclipse Magnetics is a trusted partner for reliable long-term contract manufacturing supply. This includes holding stock in UK for guaranteed fast call off supply.

Examples of Magnets used in Aerospace Applications include

  • Magnets for Gauges
  • Magnets for Speakers
  • Magnets for Servo actuators
  • Magnets for Radar TWT
  • Magnets for PM Generator rotor assemblies
  • Fuel Pump magnets
  • Flow Regulator magnets
  • Magnets for missiles
  • Cryogenic magnets for space
  • Holding magnets in seats
  • Magnets for Position and Speed sensors
  • Magnets for Air compressors
  • Magnets for Engine driven generators
  • Magnets for Tachometer generators

Academic and R&D Design Solutions

Eclipse Magnetics understands the needs of customers to design commercially viable (profitable) novel products that have lower environmental impact, higher efficiency, reduced carbon footprint, better recyclability and best performance while solving a technical problem or meeting a newly identified consumer demand.With an unrivalled expertise in designing value adding magnetic solutions Eclipse Magnetics is a trusted partner for reliable long-term contract manufacturing supply.

This includes holding stock in UK for guaranteed fast call off supply.Research activities are putting greater emphasis on cradle to cradle designed products with recycling, repair, re-use, and reduction deliberately built into the product lifecycle so that the end user can easily identify the products reduced environmental impact. A circular economy approach develops such products. Reduction in scarce materials and materials with high environmental impact are seen important in designs. Environmentally green and sustainable products now matter.

Whether the application is for designing magnets that have their grades labelled on them, designing out Rare Earth magnet materials in high power density motors, designing in better re-use of magnetic materials or helping develop hybrid drive systems, Eclipse Magnetics can design, specify, produce samples, send for customer approval and then mass produce to meet your automotive requirements. We like to use mutual NDA. We design to meet requirements for pull forces, torques, field strengths, temperature, etc. Our magnetic solutions include weight reduction, miniaturisation, higher efficiency, greater holding force, cost reduction and even reduction of rare earth material use.Our manufacturing  also allows us to supply our solutions with PPAP, PSW and FAIR available.



Application examples include

  • Hybrid drives
  • 100% recycled product initiatives
  • Rare Earth magnet reduction motors and generators
  • Collaboration with University Research
