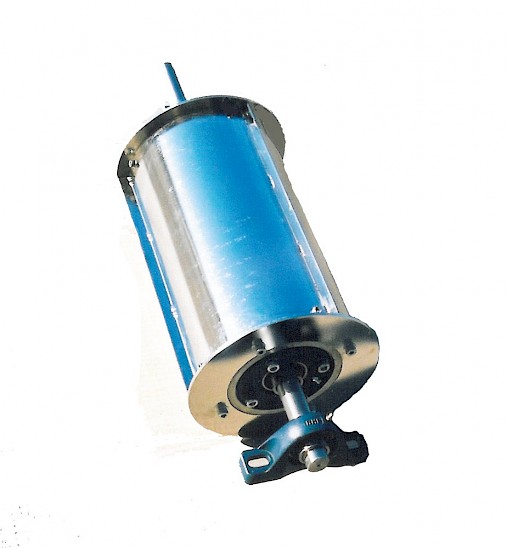

Magnetic Drum Metal Separator

Ideal for removing tramp ferrous material from dry bulk materials

  • High-performance primary magnetic separator
  • Suitable for use with dry powders, granulates or sand
  • For use at end of conveyors or vibratory feeders
  • Multiple sizes available

Overview - Magnetic Drum Metal Separator

Process protection against ferrous contamination

The high-intensity drum magnetic separator  is ideal for the continuous removal of tramp ferrous contamination from any dry bulk material and is regularly installed in the most arduous  of environments.

Magnetic drums should be fitted at the discharge end of conveyors or vibratory feeders. High-performance Rare Earth magnets are incorporated within a stainless steel wear resistant drum shell. Cleaning is continuous; the drum rotates taking contamination away from the static magnets.

Suitable for dry and semi dry,  powders, granulates and sand etc

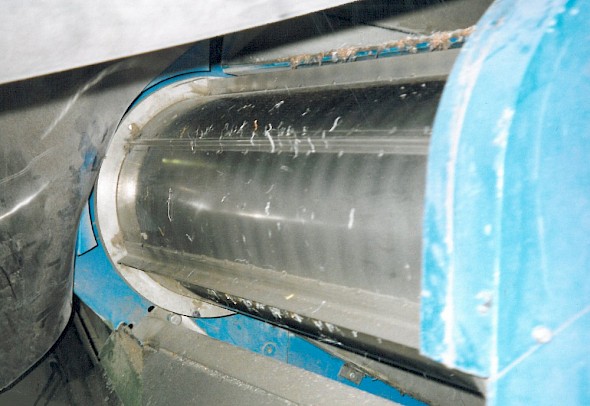

Can be installed at the end of conveyor belt, vibratory feeder or in-line chute sections

Reduces spark risk
Continuous self-cleaning
Removes large to medium sized contamination
Allows difficult products to be screened
High volume capacity

Magnetic Performance: 3,500 Gauss
Performance Reading: 215mm Dia. = 85mm, 315mm Dia. = 100mm 400mm Dia. = 150mm*
Temperature: -5°C / +40°C
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeB)
Drum Shell: 304 grade stainless steel
