Ferrite (Ceramic) Shallow Pot-Countersunk Mounting

Ideal for holding applications and securing with a screw

  • For clamping and holding applications
  • 120° maximum operating temperature
  • Excellent resistance to corrosion
  • Mild steel pot with zinc plated body

Overview - Ferrite (Ceramic) Shallow Pot-Countersunk Mounting

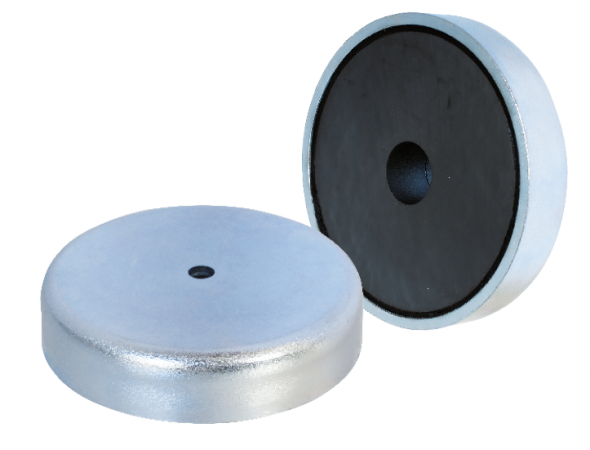

Ferrite (Ceramic) Countersunk Mounting Pot Magnet / Countersunk Shallow Pot Magnet

The countersunk mounting pot magnet is also known as a shallow pot magnet (a term often used with ferrite material as the inner magnet but other magnet materials are used). The countersunk mounting pot magnet / shallow pot magnet is a ferromagnetic steel cup into which is inserted a countersunk ring magnet. There is a hole all the way through which allows a screw head to be inserted into the countersunk mounting and then screw the magnet to any material of your choice to give a good mechanical hold. Take care not to over tighten the screw to prevent breaking the magnet material (which is brittle in nature).

Pot Magnets for Clamping and Holding Applications

The countersunk mounting pot magnet / shallow pot magnet is a very popular pot magnet, ideal for clamping and holding applications. It is designed to clamp directly onto ferromagnetic surfaces such as mild steel. Ferrite countersunk mounting pot magnets / ferrite shallow pot magnets have a maximum operating temperature of up to +120° C and are available in plated finish.

Model Variations

Product NumberDiameter (mm)Thickness (mm)Hole size (mm)Screw headWeight (g)Pull force (kg)Units per pack
E8872064.2M492.710
E8762575.5M5163.610
E8773275.5M5277.210
E8784085.5M55395
