Neodymium Discs Magnets

Ideal where compact size with maximum strength is required

  • Compact size with strongest magnetic performance
  • Nickel plated
  • N35 grade material
  • 80°C max operating temperature

Overview - Neodymium Discs Magnets

NdFeB (Rare Earth) Neodymium disc magnets



Neodymium magnets or NdFeB disc magnets are round coin-shaped Neodymium magnets of varying diameter and thickness. Generally the NdFeB disc magnets are axially magnetised i.e. one circular flat face is a North pole, the other circular flat face is a South pole with the distance between the flat faces (the disc thickness) being the distance between the poles (the magnet is magnetised along the central axis of the Neodymium disc magnet). All our NdFeB disc magnets are supplied as axially magnetised NdFeB magnets unless otherwise stated.

Diametrically Magnetised Neodymium Disc Magnets

Diametrically magnetised Neodymium rare earth magnets are possible (i.e. the magnet is magnetised across the diameter perpendicular to the central axis - like being magnetised from 12 noon through to 6pm when looking down onto the magnet circular face). If you were to put a row of cans flat face down onto a table to form a single line of touching cans, this is how diametrically magnetised magnets would normally attract each other - point contact. We produce the majority of these as custom magnets.

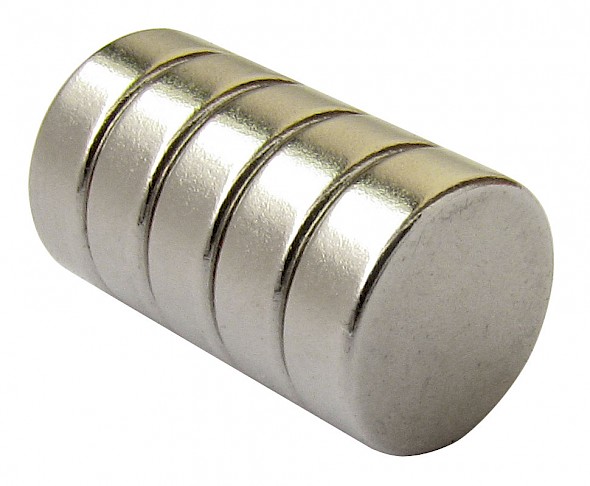

The axially magnetised NdFeB rare earth disc magnets can be stacked in attraction to create thicker magnets (in multiples of the magnet thickness). Increasing the Neodymium disc magnet thickness can give an increase in magnetic output from the magnet but there is a thickness at which adding extra magnet height gives less and less performance benefit (the performance plateaus off) - if more performance is needed then a bigger diameter magnet should be considered (or ask us for advice).

So if you are not sure how thick your magnet should be then consider getting a thinner magnet and building up height by stacking until you empirically gain the performance you require. The Neodymium disc magnets can be fixed in place by using adhesives (e.g. superglue / cyanoacrylate, two part epoxies, etc). Holes can also be machined into parts for the magnets to be glued in place or inserted deeper and potted away to hide the magnet or give it extra corrosion protection. Sometimes the discs are covered to hide them e.g. in furniture making a thin wood layer is put over the magnet to hide it and improve the aesthetic appearance of higher value wooden furniture (bearing in mind that it introduces an air gap which will lower the magnetic pull force which can be gained by using thicker NdFeB magnets and/or bigger diameter NdFeB magnets). The Neodymium disc magnets give more pull force when attracting another magnet than when attracting a ferromagnetic (e.g. mild steel) part.

Increasing the Force of Neodymium Disc Magnets

If more pull force is required you could either use thicker magnets (perhaps stack magnets if testing), use a bigger diameter magnet (particularly when there is a distance between the magnets), minimise any distance (usually an air gap) between attracting magnets (smaller gaps give much more performance), use a stronger magnet grade (e.g. N48 instead of N30), or use any combination of the above. In some applications, you may simply be able to double your performance by repeating your magnet system in another location (e.g. to hold a door closed, have a magnet system at the top corner and add another at the bottom corner, doubling the potential performance). Note that it typically takes 5 times less effort to slide magnets apart than to pull apart so applications where magnet pole faces can slide apart have less holding force (if possible turn them so that they pull directly away from each other to make the pull force stronger).

The Neodymium disc magnets are, unless otherwise stated, nickel plated (usually a NiCuNi triple layer) - other platings are possible upon request. The Neodymium disc magnets are supplied either with a keeper or supplied in rows with a keeper at each end. If you are in any doubt about the choice of magnet, its size or need technical assistance, please contact us.

Model Variations

Product NumberDiameter (mm)Thickness* (mm)Weight (g)Pull Force (kg)Units per pack
N835310.10.1350
N800320.10.310
N836410.10.1650
N801420.20.410
N802430.30.710
N803440.40.910
N837510.20.2050
N804520.30.5510
N805530.40.8510
N806550.71.310
N838610.20.3350
N807630.61.010
N808640.81.310
N824661.32.0010
N839810.40.3950
N825831.21.2810
N809841.51.710
N810851.72.1210
N840910.50.4550
N811931.41.610
N8411010.60.5150
N8261021.21.1010
N8121031.81.6510
N8131052.92.710
N8421210.90.6050
N8271221.81.3010
N8281232.62.1010
N8431511.40.7550
N81415342.53
N8291556.84.105
N8152037.13.303
N830205125.505
N816201023.610.501
N831255199.05
