Rubber Coated Neodymium NdFeB Magnets

Strong adhesion with surface protection against scratching or marking

  • Santoprene Rubber coating for scratch-free clamping
  • Neodymium Magnets (NdFeB) inside for high strength holding power
  • High resistance to sliding whilst holding, gripping or clamping
  • Protects delicate surfaces such as car body work or other painted surfaces
  • Maximum recommended operating temperature is 60°C

Overview - Rubber Coated Neodymium NdFeB Magnets

Rubber Covered Neodymium Magnets

The multiple pole design of  our rubber coated Neodymium (NdFeB)  or Rare Earth  pot magnets ensures a dense shallow magnetic field on the holding surface. This allows for excellent holding onto thin surfaces such as car body metal.or point of sale gondolas. With excellent holding force up to 42 kg it is resistant to slippage even when holding or clamping heavy items. They offer a scratch free alternative to standard Neodymium magnets.

Rubber Covered Neodymium Pot Magnets

These rubber coated Neodymium (NdFeB) pot magnets are especially suitable for magnetically fixing objects such as advertising displays or attachments to cars  body work (the metal work must have a mild steel content). They are also suitable for retail applications such as mounting signs or POS banners. They are also used for saftey applications such as holding temporary lighting. The rubber coating also  ensures a  good level of corrosion protection in humid conditions.

Because of their high performance, slide resisting properties and paint work protection ability, these rubber coated Neodymium (NdFeB) pot magnets are  widely used in the retail  and display industries. They can also be referred to as Boutique Magnets because of their protective qualities. Three  versions are available: Threaded neck (external male threaded stud) - you could attach a nut to this design style, a  screwed bush (external female threaded bush) - you could attached a bolt or eyebolt to this design style and also a circular version which have an internal M4, M5 or M8 internal thread  for locating various attachments.

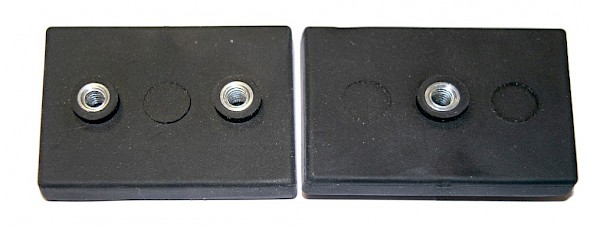

In addition to the 3 round options we alos offer a rubber covered rectangular version with one or two internal threaded holes.  To read more about our rbber coated magnets with pre-fitted swivel hook attachments click here.



Model Variations

Product NumberBush dia. (mm)CoatingColourDia. dHeight (mm)Holding force (kg)Thread size
E851N/ASantoprene RubberBlack22mm6mm5M4x6.5mm
E853N/ASantoprene RubberBlack43mm6mm8.5M6x15mm
E854N/ASantoprene RubberBlack66mm8.5mm18M8x15mm
E855N/ASantoprene RubberBlack88mm8.5mm42M8x15mm
E851/18mmSantoprene RubberBlack22mm6mm5M4
E853/18mmSantoprene RubberBlack43mm6mm8.5M4
E854/110mmSantoprene RubberBlack66mm8.5mm18M5
E855/112mmSantoprene RubberBlack88mm8.5mm42M8
