Samarium Cobalt Deep Pot Magnet

Ideal for higher temperature holding and clamping applications

  • Operates at up to 200?C temperature
  • Features a brass pot casing
  • Diameter ground to H6 tolerance
  • Ideal for press fit applications

Overview - Samarium Cobalt Deep Pot Magnet

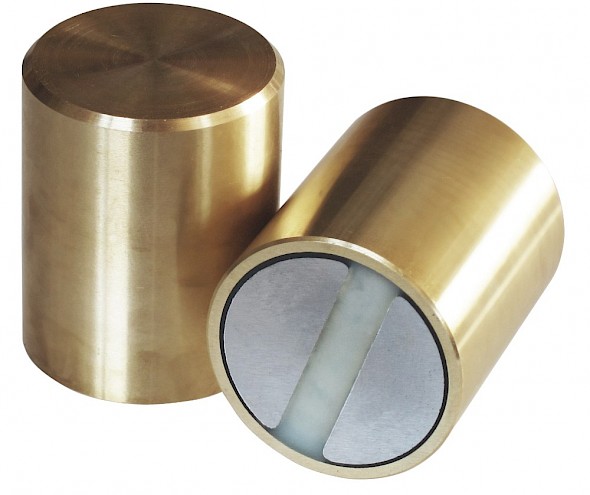

Samarium Cobalt Bi-Pole Deep Pot Magnets

The Samarium Cobalt (SmCo) bi-pole deep pot is used in higher temperature clamping applications. The bi-pole pot magnet is also known as a twin-pole pot magnet.

The deep pot name is linked to the design style (usually taller pot magnets with magnetism deeper into the clamped ferromagnetic surfaces). The Samarium Cobalt material allows this powerful rare earth pot magnet to be used at temperatures up to +200 degrees Celsius (+392 Fahrenheit).

Having a precision ground H6 tolerance on its brass retaining shell / cup allows the magnet to be inserted into precision milled holes by press fitting. The SmCo magnet material is embedded within the pot magnet structure – two ground mild steel poles are visible (one is a North face; the other a South face), allowing flux concentration to give a high pull to surface area ratio. The steel poles also allow the Samarium Cobalt deep pot bi-pole magnet design to take any mechanical forces during the clamping process, protecting the SmCo magnet within the deep pot.

Applications of the Samarium Cobalt Deep Pot Magnets

This Samarium Cobalt deep pot design is often used in fixturing jigs, assembly designs, work-holding positioning applications, high temperature clamping applications and applications where high hold forces exist alongside larger mechanical knocks during the clamping.

The Samarium Cobalt (SmCo) bi-pole pot magnet comes in diameters varying from 6mm through to 32mm and height varying from 20mm to 40mm. The Samarium Cobalt (SmCo) bi-pole deep pot magnets have pull forces varying from 0.8kg (8N) up to 60kg (600N) depending on the application.

Model Variations

Product NumberDiameter (mm)Thickness (mm)Weight (g)Pull force (kg)Units per pack
E75062040.820
E75182072.220
E752102011420
E753132019620
E75416202912.510
E755202557235
E7562535128402
E7573240228602
