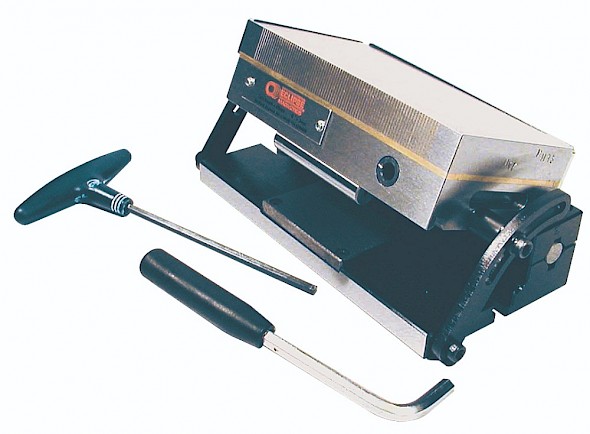

Simple Magnetic Sine Tables Short Lift

Highest quality sine tables for precision grinding and spark erosion.

  • Pole pitch 0.5mm brass / 1.5mm steel
  • Neodymium (rare earth) magnet system provides strong clamping force.
  • Clamping force 80N/CM²
  • Tilts on longitudinal axis
  • Maximum precision
  • Very low height
  • Tilt range 0-45 degrees
  • Angular accuracy: plus / minus 5 sec
  • Baseplate thickness at 0 degrees = 3mm
  • Plane parellelism plus / minus 0.005 / 100mm

Model Variations

Product NumberChuckTop plate length (mm)Top plate width (mm)Base lenght (mm)Base width (mm)Height at zero (mm)Weight (kg)
SSTFP1018ERFP10181801002151157312
SSTFP1325ERFP13252551302951957824
SSTFP1535ERFP15353501503901658939
