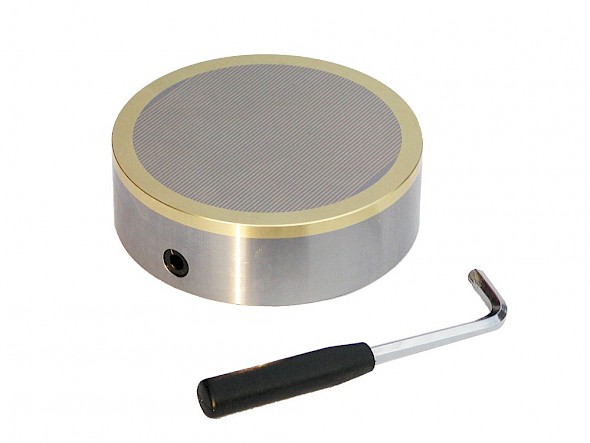

Circular Standard Chuck

Fast, accurate clamping for grinding and machining components

  • All metal top plate - high accuracy and long lifespan
  • High corrosion resistance - resists damage from coolants
  • Chrome plated side and end stops - accurate location
  • Base plate - for fixing to a machine bed (clamps supplied)
  • Simple on-off switching - removable operating handle
  • Fail-safe permanent magnetic technology

Overview - Circular Standard Chuck

Cost-effective permanent magnetic chucks for grinding and turning applications.

Our Standard range chucks provide high performance at an extremely competitive price. Available in a choice of 2 pole formats, the standard chucks are manufactured from steel and brass with neodymium magnets located in the top plate to enhance performance.

Pole spacing options

Fine pole - ideal for thin and small workpieces from 3mm to 0.7mm thick

Standard pole - ideal for clamping thicker workpieces >3mm

Model Variations

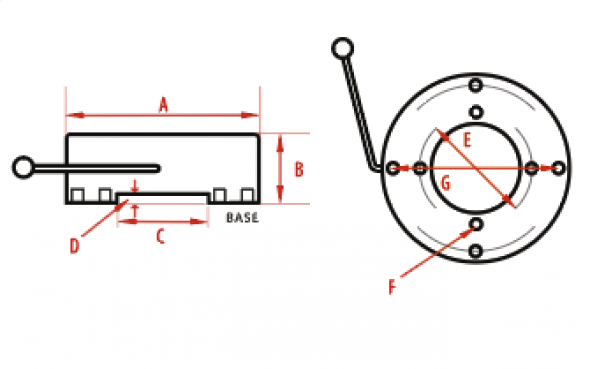

Product NumberA (mm)B (mm)C (mm)D (mm)E (mm)F (mm)G (mm)Weight (kg)
Standard
ECSP1001005050.86.3576.2M6N/A6
ECSP1251255050.86.3576.2M6101.69.38
ECSP1601605076.26.35101.6M10139.713.5
ECSP1951955076.26.35101.6M10139.718
ECSP2552555085.76.35114.3M10190.522.50
ECSP31031050152.46.35184.1M1225432
ECSP35035050196.856.35196.85M12N/A40
Fine
ECFP1001005050.86.3576.2M6N/A6
ECFP1251255050.86.3576.2M6101.69.38
ECFP1601605076.26.35101.6M10139.713.5
ECFP1951955076.26.35101.6M10139.718
ECFP2552555085.736.35114.3M10190.522.5
ECFP31031050152.46.35184.15M1225432
ECFP35035050196.86.35234.9M12N/A40
