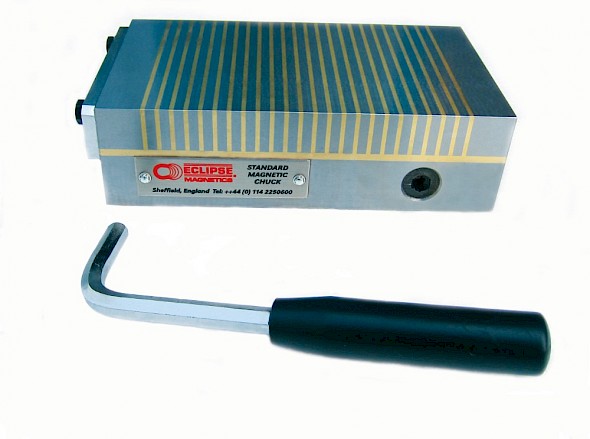

Rectangular Standard Chuck

Fast, accurate clamping for grinding and machining components

  • All metal top plate - high accuracy and long lifespan
  • High corrosion resistance - resists damage from coolants
  • Chrome plated side and end stops - accurate location

Overview - Rectangular Standard Chuck

Cost effective, fast and accurate clamping in grinding applications

Cost-effective permanent magnetic chucks for grinding applications, fine or standard pole options. Our Standard range chucks provide high performance at an extremely competitive price. Available in a choice of 2 pole formats, the standard chucks are manufactured from steel and brass with neodymium magnets located in the top plate to enhance performance. Ideal for thin and small workpieces from 3mm to 0.7mm. Thick Standard pole - ideal for clamping thicker workpieces >3mm.

  • Base plate - for fixing to a machine bed (clamps supplied)
  • Simple on-off switching - removable operating handle
  • Failsafe permanent magnetic technology



Model Variations

Product NumberLength (mm)Width (mm)Height (mm)Weight (kg)
Standard
ERSP1018180100509.5
ERSP13252551305015
ERSP15303001505020.5
ERSP15353501505023.5
ERSP15454501505030
ERSP20606002005052
Fine
ERFP1018180100509.5
ERFP13252551305015
ERFP15303001505020.5
ERFP15353501505023.5
ERFP15454501505030
ERSP20606002005052
