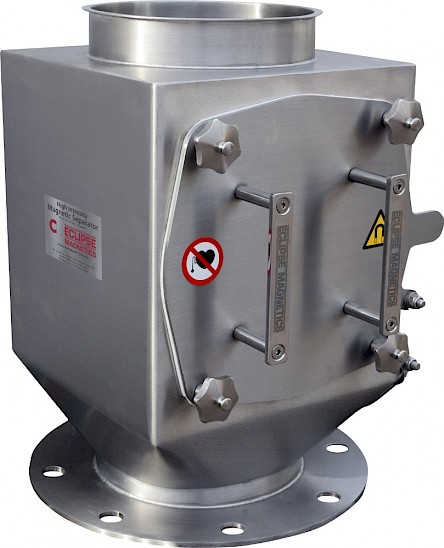

Rota-Grid Separator

Removes ferrous contamination from substances prone to bridging or caking

  • Rotating magnet pack ensures continuous flow
  • Ideal for dry and semi-dry powders and granulate such as starch
  • Includes easy-clean magnetic cartridge to minimize cleaning downtime
  • ATEX approved versions available

Overview - Rota-Grid Separator

High intensity magnetic separator for dry, semi-dry powders and granulates

The Rota-Grid unit comprises of a centrally mounted magnetic rota which incorporates several "Easy-Clean" magnetic rods. This rotates to gently agitate the product, therefore preventing any blockages and ensuring flow continuity.

While the primary function of this unit is to extract ferrous contamination from the product that is prone to caking or bridging, the rotary action of the grid means contamination is presented to a greater number of magnetic surfaces than a standard fixed grid, offering even more effective contamination removal.

The Rota-Grid magnetic separator can be supplied to Pharmaceutical standards if required.

Applications
Suitable for the magnetic separation of dry and semi-dry powders and granulates
Can be installed in any vertical process line

Benefits
Housed easy-clean grid magnets are easy to clean
High collection capacity of contamination
Removes micron-sized contaminants
Reduces 'spark' risk

Performance
Magnetic performance: 7000, 9000, 10000 (Easy-clean), 11000 (Fixed) &  12000 (Fixed) Gauss
Performance reading: On tube surface

Magnet grade: N35  - Inspected and confirmed via hysterograph prior to use
Temperature: -4°F / +140°F (-20°C / +60°C)
Pressure: + / - 3 psi (+ / - 0.2 bar)
Electrical Specification: 400v industrial three-phase IP65 rated motor gearbox

Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeb)
Housing: 316-grade stainless steel
Tubing: 316-grade stainless steel
Other Parts: 316-grade stainless steel
Sealing: Self-adhered white foam
Surface finish: Brushed internally / Polished externally to 1.2μm

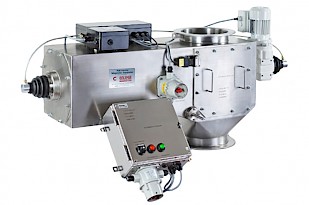

For automated clean rotating separator see Auto-Rota Shuttle
