Ceramic Pot Magnet
Ideal for retail, display or industrial holding or mounting applications
Neodymium Pot Magnet
Ideal for retail, display or industrial holding or mounting applications

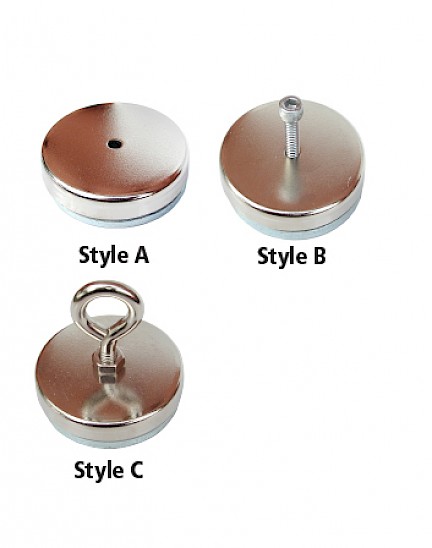

- Style A: Nickel Plated Pot
- Style B: Shallow Pot with Bolt
- Style C: Shallow Pot with Loop
Overview - Neodymium Pot Magnet
Neodymium Pot Magnet
- Also see our range of Ceramic Pot Magnets and Ceramic Round Base Magnets
Technical Data
Model Variations
| Product Number | Diameter | Thickness | Pull Force | Style |
|---|---|---|---|---|
| E684 | 2.03" (51.6mm) | 0.18" (4.6mm) | 148lbs (67kg) | A |
| E685 | 2.62" (66.5mm) | 0.37" (9.4mm) | 200lbs (91kg) | A |
| E686 | 2.03" (51.6mm) | 0.18" (4.6mm) | 95lbs (43kg) | B |
| E687 | 2.03" (51.6mm) | 0.18" (4.6mm) | 148lbs (67kg) | B |
| E688 | 2.62" (66.5mm) | 0.37" (9.4mm) | 200lbs (91kg) | B |
| E689 | 2.03" (51.6mm) | 0.81" (20.6mm) | 95lbs (43kg) | C |
| E690 | 2.03" (51.6mm) | 0.81" (20.6mm) | 148lbs (67kg) | C |
| E691 | 2.62" (66.5mm) | 1.00" (25.4mm) | 200lbs (91kg) | C |
