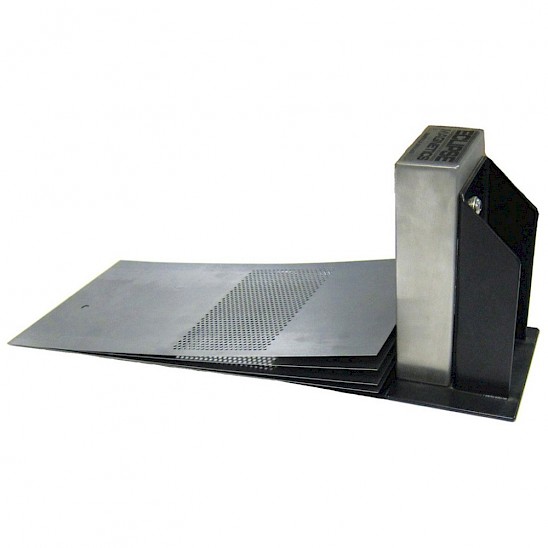

Sheet Steel Separator

Quick, easy, safe way to separate thin steel sheet

  • Typically separate materials from 0.008" to 0.100" (0.02mm to 3mm) thickness
  • Accommodate virtually any shape or size material
  • Prevent lifting of 2 sheets together
  • Switchable units available for high speed/high volume production lines
  • Feature high-intensity permanent magnets

Overview - Sheet Steel Separator

Safe and efficient removal of single steel sheets or pressings from a stack

Our magnetic sheet separators aid efficient lifting by separating the top item from a stack of sheet steel or pressed products from the rest of the stack ready for automated or manual removal.

For lifting 0.08" (2mm) sheets see Optimag P

Model Variations

Product NumberHeight (mm)Magnetic materialHeight (in)
SF100/C100Ceramic4
SF200/C200Ceramic8
SF300/C300Ceramic12
SF400/C400Ceramic16
SF500/C500Ceramic20
SF100/R100Rare Earth4
SF200/R200Rare Earth8
SF300/R300Rare Earth12
SF400/R400Rare Earth16
SF500/R500Rare Earth20
