Housed Bullet Magnetic Separator

High-intensity separator removes tramp iron from processing lines

  • Removes primary contamination e.g. nuts, bolts, screws
  • Ideal for dry/semi-dry powders and granulates
  • Ensures continuous product flow
  • Easy to inspect and clean

Overview - Housed Bullet Magnetic Separator

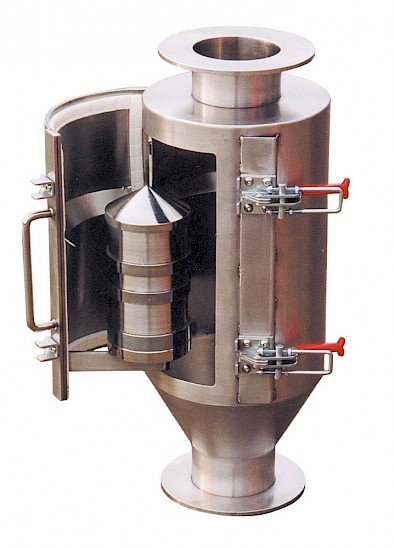

The unit is designed to prevent tramp iron from damaging expensive process machinery such as blenders, granulators, mixers and screw feed conveyors. A high-intensity magnetic bullet element is centrally mounted within a stainless steel housing. The design ensures that product flow is unaffected by the magnetic element.

The bullet element incorporates high-intensity Rare Earth magnetic material which generates deep penetrating magnetic flux fields, ensuring contamination is captured.

Applications
Suitable for dry and semi-dry powders, granulates and lumps etc.
Can be installed at inlet/outlet points

Benefits
Easy to inspect
Maintains full flow
High collection capacity
Reduces 'spark' risk
Rare Earth deep magnetic field
Removes 'tramp' sized contaminants

Performance
Magnetic Performance: 9000 Gauss
Performance Reading: on magnetic pole face
Magnet Grade: N45 – Inspected and confirmed via hysteresigraph prior to use
Temperature: -4°F / +194°F  (-20°C / +90°C)

Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeB)
Housing: 304 grade stainless steel
Other Parts: 304 grade stainless steel
Toggle Clamps: Zinc plated mild steel
Sealing: Self adhered white foam (FDA)
Surface Finish: Bead blast

For fine particle separation see Easy Clean Housed Grid
