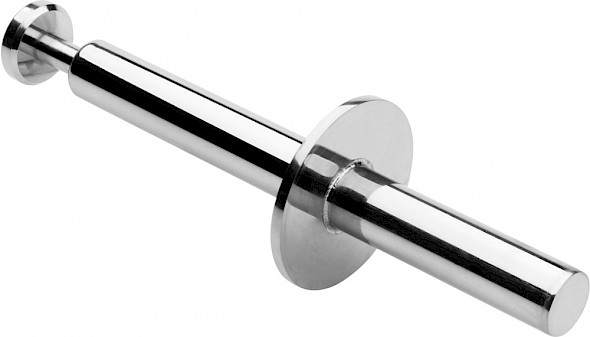

Magnetic Sampling Probe

Ideal for quality control inspections on powders, liquids or granulates

  • Ideal for HACCP sampling at goods inward, outward or mid-process
  • Suitable for powders, granulate or liquid
  • Features an easy clean mechanism
  • Various probe lengths available up to 1m

Overview - Magnetic Sampling Probe

Powerful magnetic inspection probe capable of removing micron sized contaminants

This magnetic inspection probe is ideal for quality control personnel to quickly and easily carry out product purity inspections to ensure food safety. The probe should be used for sample inspection of product at goods inward, prior to dispatch, and at critical control points throughout the process line for batch testing.

Cleaning the contamination is easy with just a few simple steps. Remove the unit from the sampling area and, while holding the body of the probe, simply pull the rear handle backwards. This will release any attracted contamination enabling further analysis to be conducted.

Applications
Suitable for sampling and inspection of all powders, granulates and liquids
Can be used at existing sampling points


Benefits
Magnetic inspection probe is easy to clean and simple to use
Meets audit requirements
Indicates if contamination is present


Construction
Magnetic Material:  Rare Earth Neodymium Iron Boron - (NdFeB)
Tubing: 316-grade stainless steel
Other Parts: 316-grade stainless steel
Surface Finish: Polished to 0.6μm


Performance
Magnetic Performance: 9,000 Gauss
Performance Reading: On tube surface
Magnet Grade: N45 - Inspected and confirmed via hysteresigraph prior to use
Temperature: -4°F / +194°F (-20°C / +90°C)

For protection of viscous liquids see High Intensity Liquid Filter
