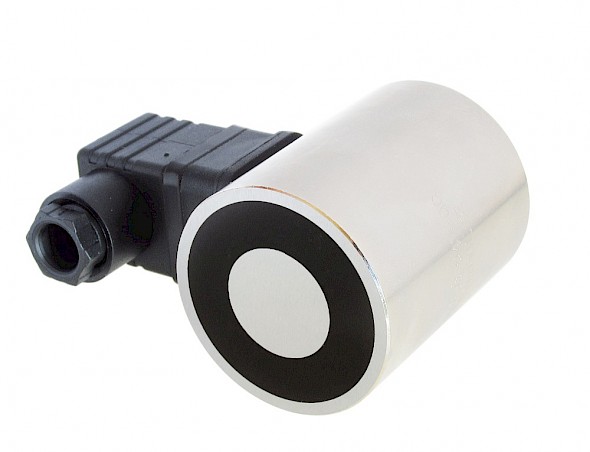

Energize To Release Electromagnet

When activated provides a release action

  • Ideal for access control, security or automation projects
  • High quality manufacture
  • Available as 24VDC or 240VAC versions
  • Strongest magnetic performance
  • Easy to apply, ideal for holding heavier items
  • N35 grade nickel plated magnet material
  • 176°F (80°C) max operating temperature

Overview - Energize To Release Electromagnet

Energize to Release Electromagnet, Electro-Permanent Magnet, Electro-Permanent Solenoid

Electrical power in the solenoid is required to the turn the magnet OFF. Power is removed to restore the magnet to ON. Pull force conversion (approximate):- 1kg = 10N = 2.2lb. The outer shell of this energize to release electromagnet is a sturdy bright nickel plated cylinder, passivated with body mounting. They are designed for demanding clamping and release applications. Typical applications include; door locking mechanisms for access control or security, fire door holding, medical devices , feeder systems for automated packaging machinery, pick and place equipment and power generation.

High Quality Energize to Release Electromagnet

The Energize to release electromagnet is an electro-permanent concept - a solenoid (wound copper coil) within a high quality high permeability iron assembly for high clamping forces and low magnetic losses plus a magnet built into the assembly. The iron cylinder of the energize to release electromagnet is of sturdy design with a bright nickel finish passivated with body mounting.

Armature plates (keeper plates) exist to suit each energize to release electromagnet unit. It has one central tapped hole on the rear face. Depending on the size, the energize to release electromagnet has two styles of electrical connection: Hirschman connectors and Hirschman style connectors.

The energize to release electromagnet has, depending on the size, two supply voltages:- 24V dc and 240V ac. It also has a Duty Cycle of S2. The energize to release electromagnet has an IP rating of 54. The energize to release electromagnets have maximum possible pull force ratings from 285N up to 471N (61.7lbs to 103.7lbs (28kg to 47kg)) depending on the size of unit (the actual pull achieved will depend on the application).
