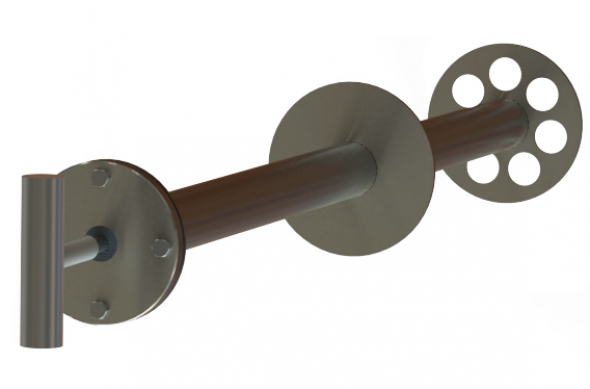

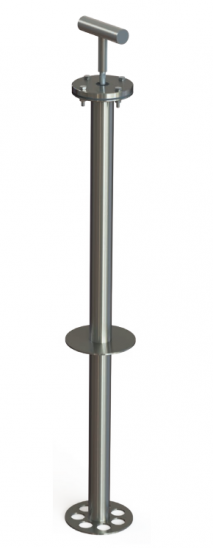

Ditch Magnets

Using neodymium magnetic technology to remove ferrous based particles from drilling mud

  • High strength magnetic cores – extracts even the smallest particles
  • Higher strength, lighter weight than traditional magnet materials
  • Highly durable stainless cartridges which protect the magnets from corrosion
  • Easy clean design which minimises cleaning time and manual handling
  • Can be customised to fit bespoke flow ditches – flat or round profile ditches
  • Modular design for easy installation
  • Automated cleaning version available – no manual intervention required
  • ATEX certification available

Overview - Ditch Magnets

Protecting Essential Drilling Machinery From Failure

Our range of bespoke Ditch Magnets use powerful neodymium magnetic technology to remove ferrous milled iron particles from drilling mud. The high performance magnet assemblies removes fine particles which are not extracted by the shale shaker or downhole filtration thereby protecting essential components such as mud pumps, drill pipes and shale shaker screens.

Ideal for installation in the mud return line or shale shaker discharge, these high performance magnet assemblies extract fine particles which are generated by drill or drill casing wear. They should be fitted across the entire span of the ditch to ensure all of the mud is exposed to the magnetic field to ensure maximum collection.

Benefits of installing ditch magnets include:

  • Protects mud pumps from abrasive damage
  • Reduces pump repair and replacement cost
  • Ensures clean fluid returns down-hole
  • Protects shale shaker screen from damage by ferrous particles
  • Separating out ferrous waste simplifies waste disposal
  • Reduces drill casing erosion
  • Easy to identify levels of ferrous contamination
