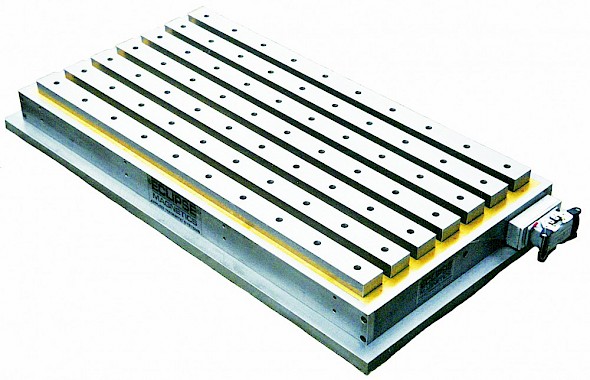

Supermill Magnetic Chuck

Enables faster feed rates and greater accuracy in precision milling

  • Failsafe magnetic technology - maintains hold even if power is cut
  • Maximises feed rates - no time wasted fitting and positioning clamps
  • Uniform clamping - eliminates vibration
  • 5 side access to the workpiece
  • Push button remote control
  • Supplied with pole extensions
  • Instantaneous 10 tonnes per ft of clamping force

Overview - Supermill Magnetic Chuck

Fast, fail-safe clamping

The ultimate permanent electro-magnetic chuck for heavy duty milling applications. Supermill is constructed from solid steel and brass; it incorporates high intensity neodymium magnets to ensure an extremely robust, high performance clamping system. It is ideal for steel plate from 15mm to 300mm thick. Supermill outperforms traditional clamping systems and other milling chucks, offering several process advantages.

Supermill cuts cycle times by 70% . This actual example shows how Supermill can make an enormous difference to production efficiency.

Example: A batch of 50 plate steel components, each one measuring 2.06m x 1.045m x 16mm thick with a machining path length of 6.21m are machined on a 40 H.P. milling machine with a 5.5m long bed. A carbide cutter is used to mill a 45 degree profile at a feed rate of 610mm/minute.

Using traditional mechanical clamps (12 required).

  • Time taken to load each component, clamp, remove the workpiece and clean the bed (20 minutes)
  • Obstructed cutting path, time taken to remove and re-position the workpiece to gain access to all faces (36 minutes)
  • Time spent cutting the component (10.2 minutes)

Total cycle time per component (66.2 minutes) Using Supermill

  • Time taken to load each component, position, clamp and clean (10 minutes)
  • No time taken to re-position as access is available for machining 5 sides (0 minutes)
  • Time spent cutting the component (10.2 minutes)

Total cycle time (20.2 minutes)



Model Variations

Product NumberLength (mm)RatingThickness (mm)Weight (kg)Width (mm)Length (in)Width (in)Thickness (in)Weight (lb)
SM26182604954218010.247.093.7492
SM45184508956718017.727.093.74147
SM452545012958925017.729.843.74196
SM4532450169511032017.7212.63.74242
SM4539450209513239017.7215.353.74290
SM4546450249515346017.7218.113.74337
SM631863012958318024.87.093.74183
SM6325630189511025024.89.843.74242
SM6332630249514032024.812.63.74308
SM26252606955525010.249.843.74121
SM6346630369519146024.818.113.74420
SM6339630309516539024.815.353.74363
SM6353630429522053024.820.873.74484
SM6360630489524660024.820.873.74484
SM8118815169517518032.097.093.74385
SM8125815249521025032.099.843.74462
SM8132815329523632032.0912.63.74520
SM8153815569531553032.0920.873.74693
SM8139815409526239032.0915.353.74576
SM8146815489528846032.0918.113.74634
SM8160815649534160032.0923.623.74750
SM8167815729537067032.0926.383.74814
SM100181000209513918039.377.093.74306
SM100251000309518825039.379.843.74414
SM100321000409523832039.3712.63.74524
SM100391000509528739039.3715.353.74631
SM100461000609533646039.3718.113.74739
SM100601000809543560039.3723.623.74957
SM100531000709538553039.3720.873.74847
SM100671000909548567039.3726.383.741067
