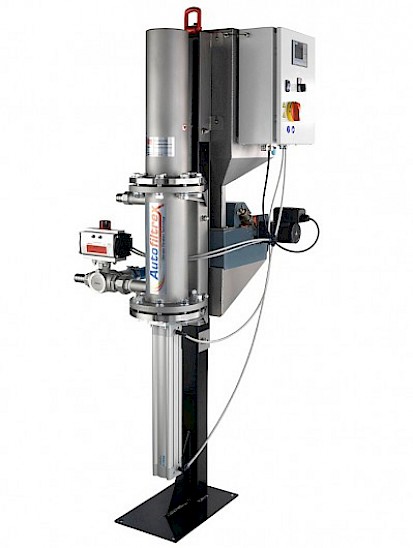

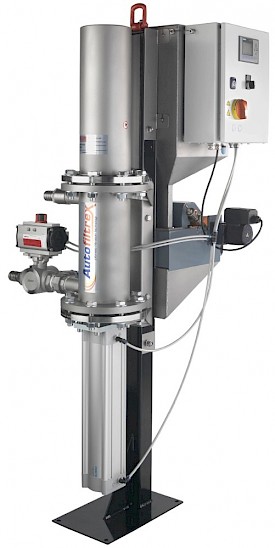

Autofiltrex Magnetic Filter

Automated Machine Tool Filtration System with Waste Reclaim Unit.

  • Gives cleaner fluid delivery to CNC or metal cutting machinery
  • Reduced expenditure on media filters
  • Fully automated cleaning, ideal for 24/7 unmanned operation
  • Minimises waste disposal of consumables such as bags and cartridges
  • Increased fluid life - cleaner fluids last longer
  • Built-in waste reclaim and fluid recovery system

Overview - Autofiltrex Magnetic Filter

Autofiltrex - automated clean 24/7 filter with integral fluid and waste reclaim unit

The Autofiltrex magnetic filter or coolant separator is the latest  in market-leading magnetic filtration technology. , ensuring a 24/7 clean  machine tool fluids.  With an integral waste reclaim and fluid recovery system it operates with minimal user intervention.  Ideal for CNC filtration, grinding, honing, lapping, wash solution and steel quenching filtration applications, it's  fine particle extraction performance provides huge cost savings in fluids and filter consumables.

The high performance magnetic cores extract even the finest of ferrous particles without stripping any essential additives from the cutting fluid or solutions. Read about some of our successful filter or separator installations.

How Autofiltrex Works

Autofiltrex works by taking dirty fluid from the holding tank and delivering clean polished fluid to the tool/workpiece contact point. As fluid flows through the Autofiltrex cylinder, high-intensity magnetic circuits extract fine ferrous contamination particles. When the magnets reach saturation point, a timed automated purging process lifts the magnetic cores from the housing thereby releasing contamination.

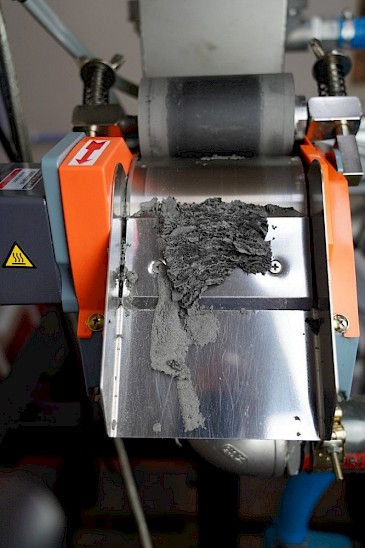

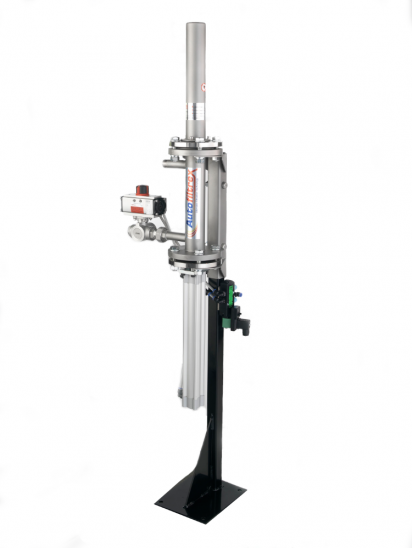

This is simultaneously diverted via a 3-way valve to the reclaim unit (or when using AF1 to a purge or holding tank.  The dirty coolant or cutting fluid is thereby exposed to a magnetic reclaim  which separates the ferrous contamination into a recyclable waste and returns any surplus clean fluid back the tank.  The unit can be set to purge at timed intervals or be manually executed. * AF1 unit is not supplied with a reclaim unit.

For higher volume automated filtration see Automag Skid

Model Variations

Product NumberMax flow rate (litres/min)Number of magnetic rods
