Ultralift TP Magnetic Lifter

Safe, efficient lifter for steel plate and steel pressings

  • Ideal for lifting single sheets from stacks
  • Quick, safe, single face engagement with the load
  • Built in safety features
  • Can lift up to 400kg

Overview - Ultralift TP Magnetic Lifter

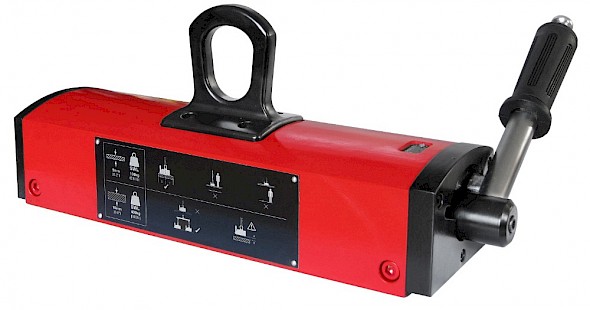

The thin plate specialist

Manually operated permanent lifting magnet specifically designed for lifting thin plate and removing single sheets from a stack. Ultralift TP can lift steel sheets with thicknesses as low as 5mm.

Ultralift TP has an in built safety button which locks the handle thereby preventing accidental release while a load is being held. Simply attach the Ultralift TP to the hook of your crane or hoist and you're ready to go. A job that takes two men with hooks, chains or slings can be done with one hand using the Ultralift TP. No more struggles to attach heavy or awkward loads. No more worries about the stability of the load once it's lifted.

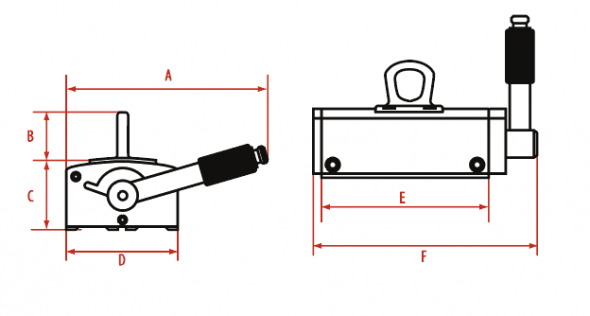

Model Variations

Product NumberSelf weight (kg)A (mm)B (mm)C (mm)D (mm)E (mm)F (mm)Material thickness 5mm swl (kg)Material thickness 5mm length max (mm)Material thickness 6mm swl (kg)Material thickness 6mm length max (mm)Material thickness 8mm swl (kg)Material thickness 8mm length max (mm)Material thickness 10mm swl (kg)Material thickness 10mm length max (mm)
TP15081815274100150202751500100150015015002001500
TP3001518152741003003521502000200200030020004002000
