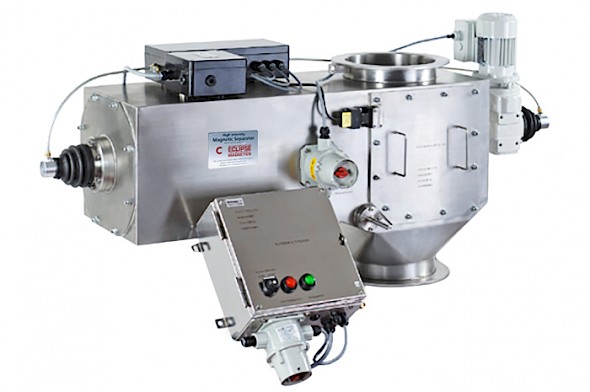

Auto-Rota Shuttle Magnetic Separator

Automated clean, rotating separator for maintains consistent

  • Enables 24/7 screening of bridging or caking ingredients
  • Ensures a consistent flow, no blockages
  • Extracts fine ferrous particles from ingredients
  • Ideal for dry or semi-dry powders and granulates
  • ATEX approved versions available

Overview - Auto-Rota Shuttle Magnetic Separator

The Auto-Rota Shuttle magnetic separator combines the benefits of Auto-Shuttle and Rota-Grid unit in one. This unique design enables screening of products prone to bridging or caking, and enables 24/7 operation without the need to stop the production process.

The unit is supplied with a pre-programmed PLC that can either work independently or connected to the central control rooms system for remote activation or monitoring etc. The full system remains air tight throughout normal operation, making it suitable for environments where ATEX equipment is required.

Applications
Suitable for dry and semi-dry powders and granulates
Can be installed in any vertical process line

Benefits
The system can attract all contamination and carry out an automatic self-cleaning without the need to stop the process
Ideal for 24/7 operations
Supplied with a pre-programmed PLC that can connect to the central control rooms system for remote activation or monitoring
Suitable for environments where ATEX equipment is required

Performance
Magnetic Performance: 7000, 9000 and 10000 Gauss
Performance Reading: On tube surface
Magnet Grade: N35 & N45 – Inspected and confirmed via hysterograph prior to use
Temperature: -5°C / +40°C
Pressure: + / - 0.2 Bar

Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeb)
Housing: 316 grade stainless steel
Tubing: 316 grade stainless steel
Other Parts: 316 grade stainless steel
Sealing: Self adhered white foam
Surface Finish: Brushed internally / Polished externally to 1.2μm

For pastes and viscous liquid separation see Liquid Filter
