High-Intensity Magnetic Liquid Traps

Ideal for installing on pressurised transfer lines, providing protection against ferrous metal contamination

  • Extraction of fine-particle ferrous metal contamination and work-hardened stainless steel
  • Typical applications - Fruit juice, syrups, chocolate, and pastes are some of the food processing applications
  • Single wall or double wall (jacketed) versions available
  • Available in several sizes to suit application
  • ATEX approved version available

Overview - High-Intensity Magnetic Liquid Traps

Removes fine ferrous contamination from liquid and food processes

The high-intensity liquid filter magnetic separator has been designed to operate in pressurised transfer lines to provide protection against ferrous and para-magnetic contamination.

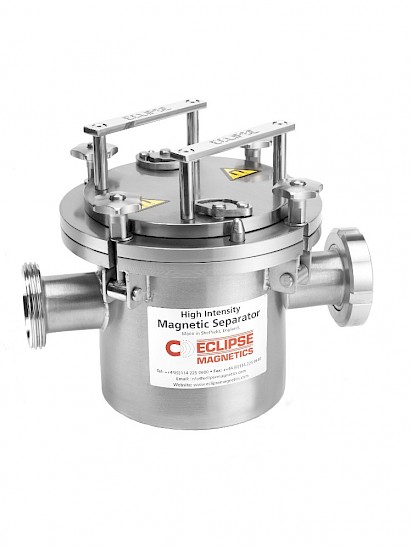

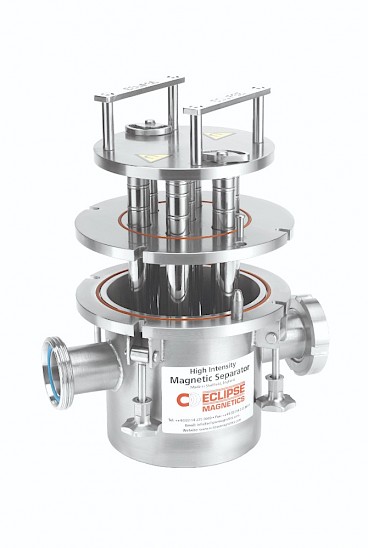

The housing comprises a vessel, magnetic lid assembly and band clamp, which secures the unit together. The magnetic liquid trap is available in two versions, single wall and double wall (jacketed for heated pipelines).

The filter can be used in any line that processes liquids at all viscosity levels, and can be installed at any angle from vertical to horizontal. A common installation location is tanker loading and discharge to inspect outgoing and incoming materials.

The liquid magnetic trap can be supplied to suit various processing volumes, pressures, temperatures and specifications.

Applications
Suitable for liquid and food processes such as chocolate, molasses, jam, syrup, juice, sauce, pastes, soup, pickles, spread, beverages
Can be installed all locations either vertically, horizontally or angled

Benefits
Easy to clean and install
Meets audit requirement
Removes sub-micron sized contaminants
No consumables


Performance
Magnetic performance: 7000, 9000, 10000 (Easy Clean), 11000 and 12000 Gauss (Fixed)
Performance reading: On tube surface
Magnet grade N35 & N45 – Inspected and confirmed via hysterograph prior to use
Temperature: -20°C / +90°C
Pressure: +6.0 Bar


Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeb)
Housing: 316 grade stainless steel
Tubing: 316 grade stainless steel
Other Parts: 304 grade stainless steel
Sealing: Silicon rubber O-ring
Surface Finish: Brushed internally | Polished externally to Ra 1.2μm

For starch applications see Rota-Grid Separator
