Chute Magnetic Separator

Easy clean, high-intensity magnetic separator

  • Ideal for use in vertical or angled chute sections
  • Suitable for use with dry powders and granules
  • Ideal for primary screening of raw materials
  • Easy release of contamination when cleaning
  • ATEX certified versions available

Overview - Chute Magnetic Separator

High intensity magnetic separator for gravity feed processes

Our chute magnets are designed to operate in arduous conditions and where contamination size is relatively large.

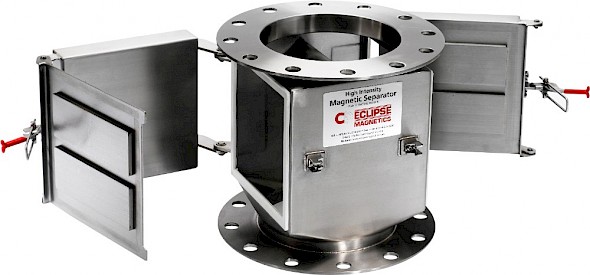

The unit has two-hinged, high-intensity magnetic packs, which are secured to a housing by an adjustable hinge arrangement and tri-cone locking nut. These tri-cone nuts ensure even pressure is generated around the food grade silicon seal.

The chute magnet can be incorporated into any form of vertical or angled pipe or chute section. A common installation location is raw material inlet points for products such as grain, rice, corn, bran and animal feed etc. A central diverter is mounted on the inlet which directs processed product onto the magnetic face, ensuring a high contamination removal rate.

Suitable for dry and semi dry, semi-dry powders, granulates and lumps etc.
Can be installed at inlet/outlet points

Easy to clean
High collection capacity
Reduces ‘spark’ risk
Meets audit requirements
Rare Earth deep magnetic field
Removes ‘tramp’ sized contaminants

Magnetic Performance: 3,500 Gauss
Performance Reading: On magnetic pack face
Magnet Grade: N35 – Inspected and confirmed via hysteresigraph prior to use
Temperature: -20°C / +90°C

Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeB)
Housing: 304 grade stainless steel
Other Parts: 304 grade stainless steel
Toggle Clamps: Stainless Steel
Sealing: Self adhered white foam (FDA)
Surface Finish: Bead Blasted

For fine particle separation see Housed Easy Clean Grids
