90° Magnetic Welding Clamp Switchable | Eclipse Magnetics

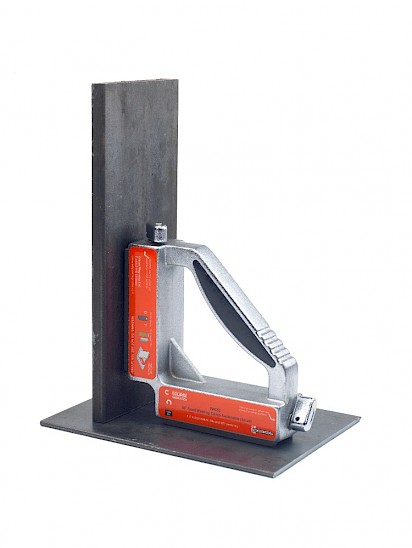

90° Magnetic Welding Clamp Switchable

Angle welding clamp with quick set up, ideal for fabrication and assembly

  • Two on/off switches for dual operation
  • Simple to engage and release from workpiece
  • Ideal for round and square tubing, angle and flat stock
  • Heavy duty, robust construction
  • Ideal for 90˚ angles

Overview - 90° Magnetic Welding Clamp Switchable

90° Fixed Welding Clamps Switchable

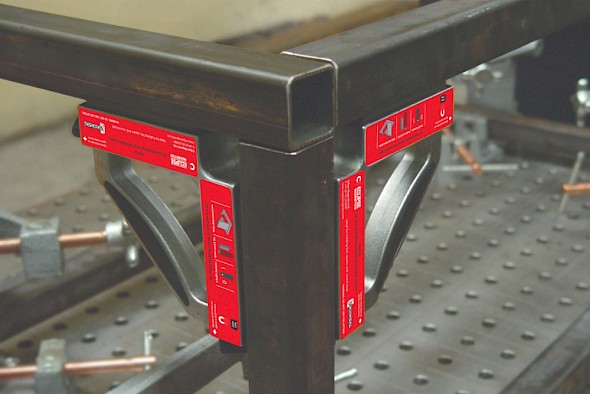

Ideal for tack welding applications as a "quick fit" alternative to traditional clamps such as  angle clamps, two axis clamps, corner clamps  or C-Clamps for angles.  Two on-off switches make it easy to engage and dis-engage instantly.  With a heavy duty construction this welding clamp is ideal to secure simple, accurate alignment on 2 work pieces when welding corner or angled steel.  Ideal for 90° welding it is available in 2 models, 55kg pull force and a 120Kg for heavier steel stock.

For other switchable clamp options click here

Model Variations

Product NumberAnglesDimensions (mm)Weight (mm)Pull Force (based on 10mm thick steel) (kg)
FWCSS90 ̊152 x 152 x 381.255
FWCSL90 ̊197 x 197 x 482.7120
