Neodymium NdFeB Shallow Pot Magnets with Thread Hole
With female threaded hole for easy component mounting

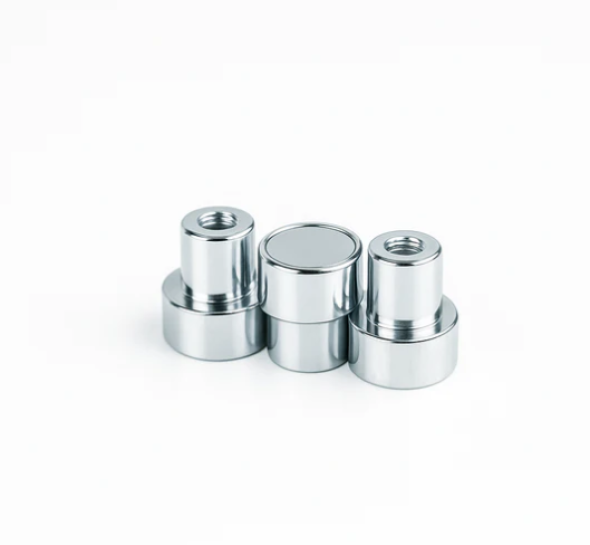

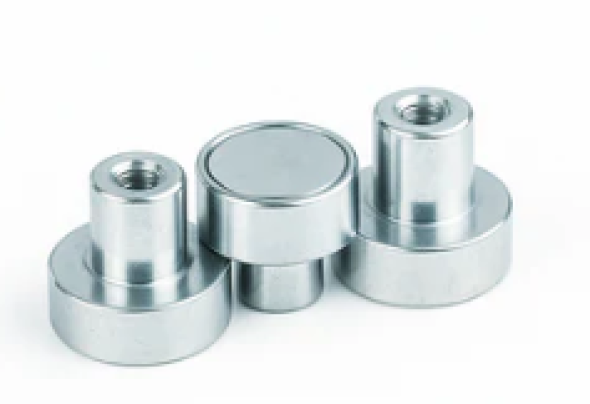

Neodymium High Temperature Shallow Pot Magnets with External Female Thread Hole
Shallow pot magnet with female threaded hole for easy component mounting
- Strongest magnetic performance
- Zinc plated body
- N42SH grade magnet material
- 150°C max operating temperature
Overview - Neodymium High Temperature Shallow Pot Magnets with External Female Thread Hole
Neodymium High Temperature Shallow Pot Magnets with Threaded Hole
Eclipse Magnetics Neodymium (NdFeB 42SH) High Temperature Shallow Pot Magnets with Internal Threaded Stud — also known as Female Threaded Stud Pot Magnets are high‑performance magnetic assemblies designed for applications requiring exceptional magnetic strength and ability to work at high temperatures. Each unit features a powerful N42SH grade neodymium magnet housed within a zinc‑plated mild steel pot, which concentrates the magnetic field onto the working face to deliver strong, reliable holding performance in a compact, low-profile design.
The integrated internal threaded stud (female thread) enables fast, secure attachment to bolts, threaded rods, male-threaded pot magnets, and other external threaded components. This design offers exceptional versatility for installers, engineers, and fabricators who need a stable, high‑torque mechanical fixing combined with strong magnetic clamping.
Durable, corrosion‑resistant, and engineered for long-term use, these neodymium shallow pot magnets are ideal for fixtures, jigs, mounting systems, panels, frames, signage, tool holding, assembly setups, and any application where mechanical fixing and high magnetic strength are required. The magnetic material offers excellent temperature stability, maintaining magnetic performance at elevated temperatures far beyond many other magnet types.
Read more about Pot Magnets
Typical Applications
Neodymium NdFeB 42SH Threaded Hole Magnets are commonly used for:
- Magnetic holding and attachment in high-temperature environments
- Secure mounting of components and fixtures in engineered assemblies
- Aerospace, automotive, and precision engineering applications
- Magnetic clamping and workholding in specialised production setups
- Sensor, actuator, and instrumentation integration.
Their combination of powerful magnetic performance and secure threaded fixing makes them suitable for advanced technical and professional applications where reliability and durability are essential.
Why Choose High Temperature Neodymium Shallow Pot Magnets with Internal Threaded Stud?
These magnets provide the ideal combination of powerful magnetic force, thermal resilience, secure threaded mounting, and durable steel construction. The neodymium core ensures high pull strength, while the internal thread offers unmatched flexibility for engineered solutions. The shallow pot design provides a low‑profile, high‑performance magnetic assembly that excels in space‑restricted or precision installations.
Key Benefits
- High‑strength magnet core delivers exceptional holding force in a compact format; N42SH grade ensures consistent, reliable magnetic performance
- Internal threaded stud (female thread) allows secure fastening with bolts, threaded rods, or male‑threaded magnets
- Shallow, low‑profile steel pot housing directs magnetic force to the working face for maximum grip while keeping overall height to a minimum
- High-temperature resistance – performs reliably up to 150°C, ideal for demanding industrial and scientific use
- Secure, high‑torque mechanical fixing engineered for stable attachment even under demanding conditions, vibration, or load-bearing use.
Model Variations
| Product Number | Diameter (mm) | Thickness* (mm) | Total Height (mm) | Thread Size (mm) | Ferrule Outer Dia. (mm) | Weight (g) | Pull Force (kg) | Units per pack |
|---|---|---|---|---|---|---|---|---|
| E770NEOSH | 6 | 4.5 | 11.5 | M3 | 6 | 2.7 | 0.5 | 20 |
| E771NEOSH | 8 | 4.5 | 11.5 | M3 | 6 | 3.5 | 1.3 | 20 |
| E772NEOSH | 10 | 4.5 | 11.5 | M3 | 6 | 4.5 | 2.5 | 20 |
| E773NEOSH | 13 | 4.5 | 11.5 | M3 | 6 | 7.5 | 6 | 20 |
| E774NEOSH | 16 | 4.5 | 11.5 | M4 | 8 | 13.2 | 9.5 | 20 |
| E775NEOSH | 20 | 6 | 13 | M4 | 8 | 16.5 | 14 | 10 |
| E776NEOSH | 25 | 7 | 14 | M4 | 8 | 34 | 20 | 10 |
| E777NEOSH | 32 | 7 | 15.5 | M5 | 10 | 48 | 35 | 5 |
