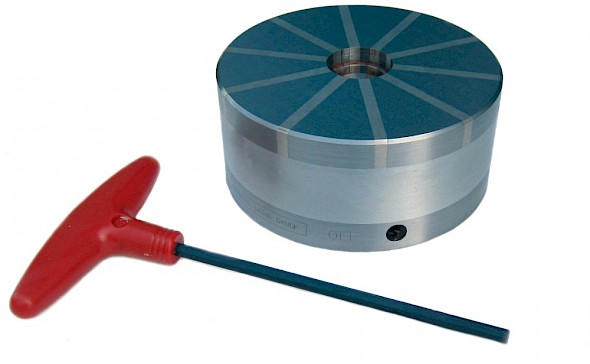

Radial Pole Premier Chuck

Quick, precise set up for grinding and turning processes

  • Thick all metal top plate - high accuracy and long lifespan
  • High corrosion resistance - resists damage from coolants
  • Through bore - allows through flushing of coolant
  • Can be rotated at up to 3000 rpm

Overview - Radial Pole Premier Chuck

Fast, safe set up on precision grinding applications

Ideal for a wide range of precision grinding and medium/heavy turning applications, the radial pole is the best option for ring type applications such as inspection and precision grinding.

The radial pole is the best option for heavy turning on ring type components. The design concentrates the entire magnetism from the chuck to the point in contact with the workpiece,
ensuring excellent hold.

The workpiece on this type of chuck should not cover more than 50% of the pole area.

  • Simple on-off switching - removable operating handle
  • Variable hold - allows adjustment of position before full hold is engaged
  • Failsafe permanent magnetic technology

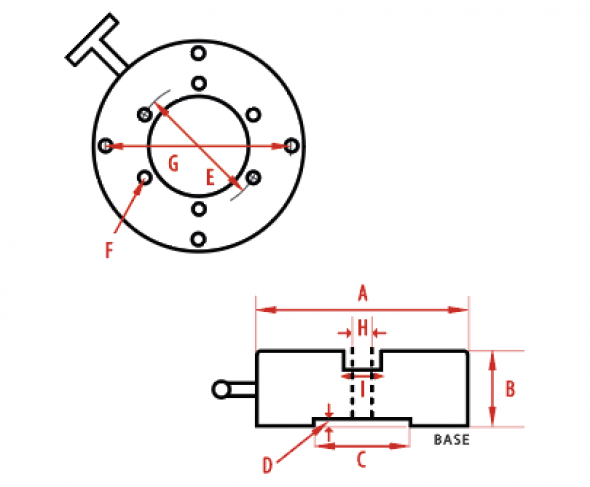

Model Variations

Product NumberA (mm)B (mm)C (mm)D (mm)E (mm)F (mm)G (mm)H (mm)I (mm)No. of poles
NR100C10048516N/AM676N/AN/A6
NR150C15069764N/AM10102323610
NR225C2257185.85114.3M10190.5505414
NR300C300711525184M12254626618
