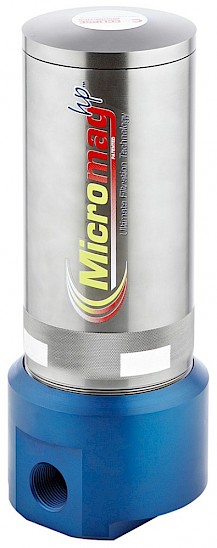

Micromag HP50 Magnetic Filter

Micromag compact magnetic filter for high pressure applications

  • Patented design and operation
  • Ideal for pressure surge filtration applications
  • High ferrous contamination collection capacity relative to size
  • Non-block magnetic circuit design
  • Can be cleaned in minutes
  • No reduction in pressure or flow
  • Environmentally friendly, promotes waste reduction

Overview - Micromag HP50 Magnetic Filter

High performance magnetic filter for pressures up to 50 bar

Micromag HP50 magnetic filter or coolant separator provides all the same operational benefits of the standard  Micromag such as disposable cost savings, longer fluid life and better product surface finish. In addition it  is compatible with  speacialist coolant installations such as  high pressure through-spindle coolant filtration applications, where the smallest of ferrous particles can damage seals, spindles and reduce efficiency of the cutting tool. Read about some of our filtration success stories.

Micromag HP50 is also ideal for applications which experience variable pressures and rapid pressure surges during start up. With a full Aluminium construction this coolant filtration unit is robust, durable and perfect for pressures up to 50 bar.

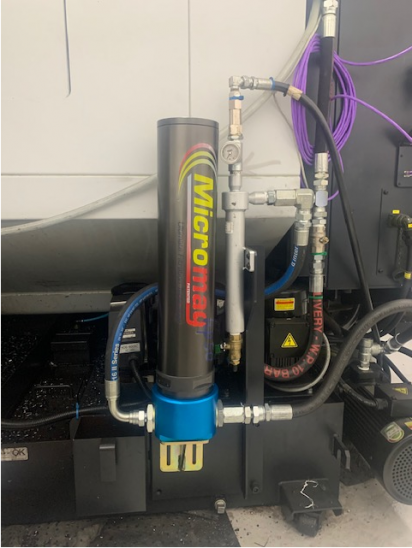

Micromag HP50 can be installed anywhere in the fluid delivery system (pre or post machine). A high strength Neodymium magnetic core  ensures that  fine particle magnetic and para-magnetic particles are removed before they can cause any expensive damage.  The magnets do not strip out vital additives in the fluid such as bacteria inhibitors.

For  even higher pressure applications see Micromag HP80
