Neodymium Shallow Pots with Countersunk Hole

Easy to mount with screw fixings

  • Strongest magnetic performance
  • Zinc plated body
  • With countersunk hole for screw fixings
  • Ideal for restricted space closure and fixing applications

Overview - Neodymium Shallow Pots with Countersunk Hole

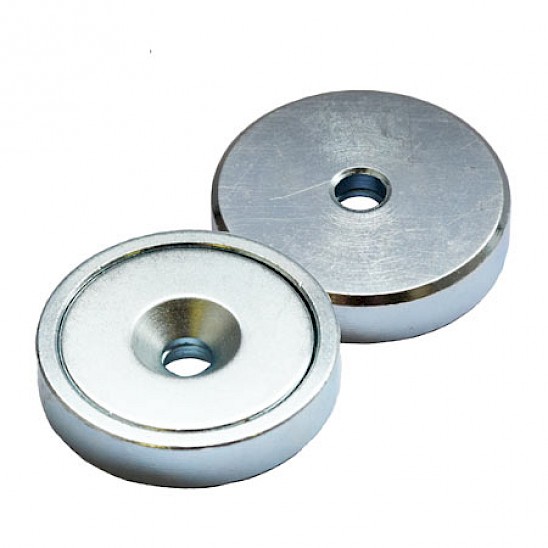

Countersunk Neodymium Shallow Pot Magnet

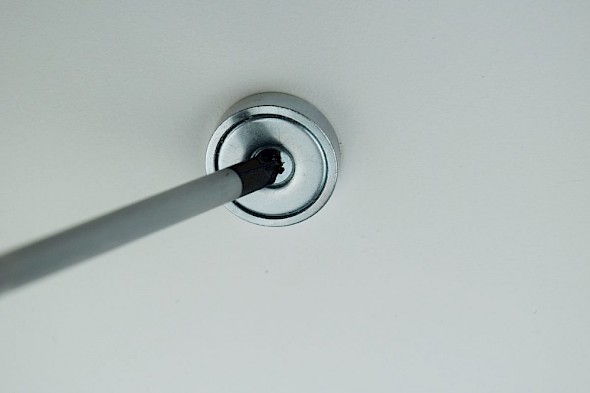

These Neodymium Shallow Pot Magnets feature a countersunk hole to accommodate screw fixings. They are ideal for applications where magnets are used closing mechanisms, where the screw head must be concealed, such as cabinet doors, drawers, gate latches and door holdings.

Countersunk Pot Magnets for Shop Fitting Applications

They are also ideal for other applications such as shop fitting where magnets are used for attaching shelving, signage, lighting systems and window displays. Neodymium is the perfect material for these applications as it gives a high magnetic strength to size ratio, hence a small magnet can be used in applications where space is limited. The countersunk hole in the magnet can accommodate anything from M3 to M5 screw head size depending on the magnet size. The countersunk magnet range is available in a number of sizes, see below for details.

Model Variations

Product NumberDiameter (mm)Thickness* (mm)Hole sizeScrew head sizeWeight (g)Pull force (kg)Units per pack
E998/NEO104.53M321.320
E999/NEO134.53M33320
E1000/NEO164.53.5M367.520
E1001/NEO2064.5M41310.510
E1002/NEO2574.5M4241610
E1003/NEO3275.5M5393110
E1004/NEO4085.5M573505
E1004/NEO4811.58.5M8100871
