Neodymium NdFeB Deep Pot Bi-Pole Magnets

Ideal for positioning, holding and clamping applications

  • Brass pot with mild steel pole pieces
  • N35 grade nickel plated magnet material
  • 80°C max operating temperature
  • Ideal for clamping applications

Overview - Neodymium NdFeB Deep Pot Bi-Pole Magnets

Neodymium Bi-Pole Deep Pot Magnet / Twin Pole Blind Ended Deep Pot Magnet

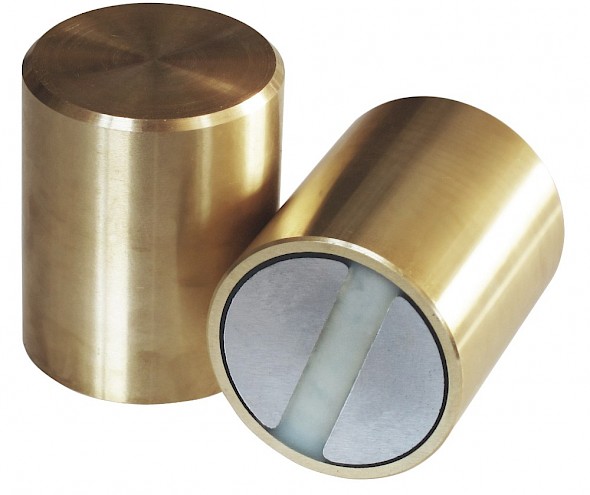

The bi-pole deep pot magnet and twin pole blind ended deep pot magnet are variants of a similar design theme. The outer casing is aluminium or brass (i.e. non-magnetic). There are two mild steel pole pieces (circular segment shaped) with a magnet between the mild steel poles.

Bi-pole and twin pole are interchangeable names for this style of pot magnet. The deep pot versions of the bi-pole or twin pole pot magnets either have a threaded hole at the back or they are blind-ended (no threaded hole or any other form of fixing).

Press fitment is usually performed on the blind ended versions). The Neodymium (rare earth) or NdFeB bi-pole deep pot magnet and NdFeB twin pole blind ended deep pot magnet versions are rated to a maximum operating temperature of +80 degrees C.

Model Variations

Product NumberDiameter (mm)Height (mm)Weight (g)Pull force (kg)Units per pack
E750NEO6204120
E751NEO82072.520
E752NEO1020114.520
E753NEO132019720
E754NEO1620291510
E755NEO202557285
E756NEO2535128452
E757NEO3240228702
