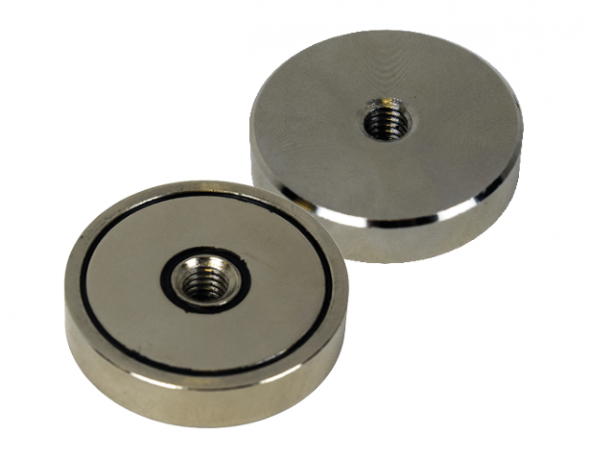

Neodymium NdFeB Shallow Pot Magnet with Internal Thread

Ideal for clamping or holding applications

Can accommodate male threaded components
High strength magnetic clamping up to 39Kg pull force
Zinc plated body for extra protection
Ideal for use in sunken surfaces or recesses
Diameters available up to 40mm

Buy On Line

Get a quote

Overview - Neodymium NdFeB Shallow Pot Magnet with Internal Thread

Discover more about Pot Magnets

Want to discuss this in more detail? Get in touch

Model Variations

Product Number	Diameter (mm)	Thickness (mm)	Thread (mm)	Weight (g)	Pull Force (kg)	Units per Pack
E1018/NEO	10	4.5	M3	2.5	1.0	20
E1019/NEO	13	4.5	M3	4.3	2.5	20
E1020/NEO	16	4.5	M4	6.3	5.0	20
E1021/NEO	20	6	M4	11	7.0	10
E1022/NEO	25	7	M5	21	13.5	10
E1023/NEO	32	7	M6	36	25.0	10
E1024/NEO	40	8	M6	68	39.0	5
