Neodymium NdFeB Shallow Pot Magnets

For high strength holding and clamping performance

  • Strongest magnetic performance
  • Zinc plated body
  • N35 grade nickel plated magnet material
  • 80°C max operating temperature

Overview - Neodymium NdFeB Shallow Pot Magnets

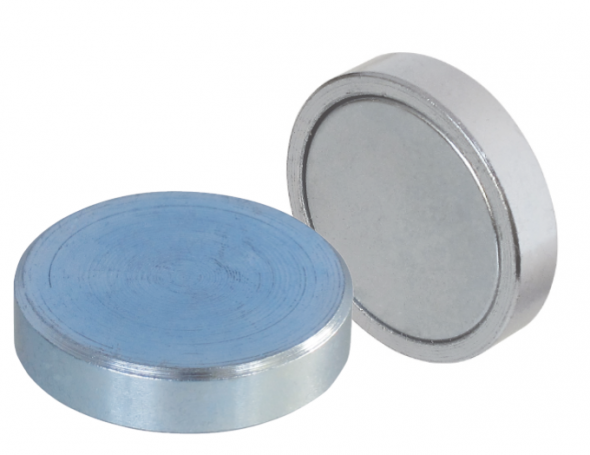

Blind ended Neodymium NdFeB shallow pot magnet

The blind ended Neodymium NdFeB  shallow pot magnet is a pot magnet that is generally wider in diameter than it is tall comprising a magnet (usually a disc magnet) inside a ferromagnetic (mild steel) cup. The ferromagnetic cup has no fixing means (no holes, no threads) - it is blind ended.

The blind ended shallow pot magnet is meant for press fitting into an application (so it does not require holes or threads to connect to it). The blind ended shallow pot magnet can sometimes (not often) also be used for applications where is clamps to a ferromagnetic surface and it is not meant to be easily removed (it is deliberately meant to be difficult to get a hold of for trying to remove).  Read more about Pot Magnets

Model Variations

Product NumberDiameter (mm)Thickness* (mm)Weight (g)Pull force (kg)Units per pack
E760NEO64.510.520
E761NEO84.51.81.320
E762NEO104.52.52.520
E763NEO134.54.5620
E764NEO164.55.59.520
E765NEO206151410
E766NEO257312010
E767NEO327403510
