Neodymium NdFeB Channel Magnet | Eclipse Magnetics

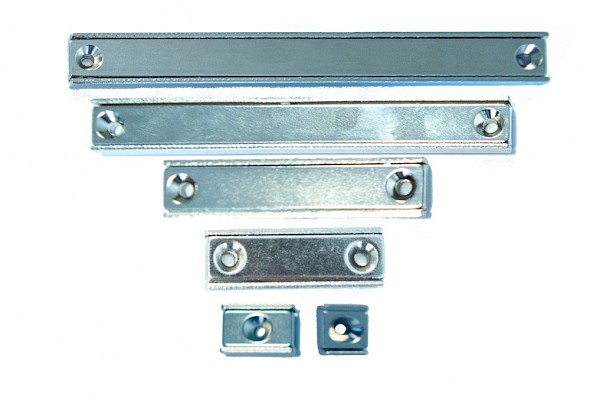

Neodymium NdFeB Channel Magnet

High strength, ideal for holding, attaching or fixing applications

  • Versatile magnet ideal for door latches, attaching signage or simple tool storage
  • Supplied complete with countersunk hole for screw mounting
  • 7 sizes available up to 120mm length
  • Pull forces available up to 42Kg

Model Variations

Product NumberLength (mm)Width (mm)Height Size (mm)Countersunk HoleHole CentersWeight (g)Pull Force (kg)Units per Pack
NCM0101013.551 x M3N/A545
NCM0202013.551 x M3N/A985
NCM0404013.552 x M33018173
NCM0606013.552 x M35028283
NCM0808013.552 x M37038331
NCM010010013.552 x M39047361
NCM012012013.552 x M311057401
