Neodymium NdFeB Shallow Pot Magnets
For high strength holding and clamping performance
Neodymium High Temperature Shallow Pot Magnets
For high strength holding and clamping performance
- Strongest magnetic performance
- Zinc plated body
- N42SH grade magnet material
- 50°C max operating temperature
Overview - Neodymium High Temperature Shallow Pot Magnets

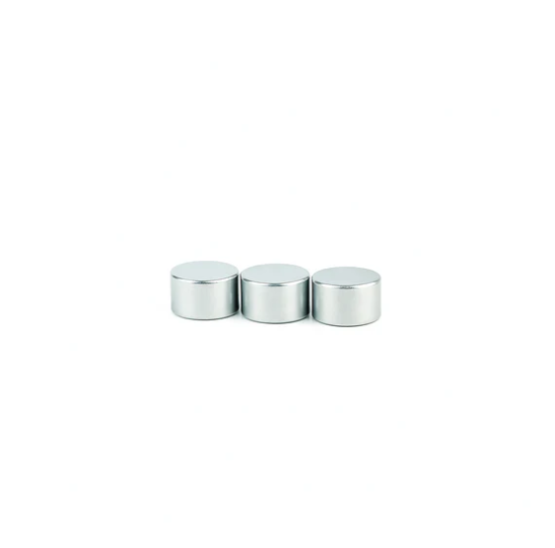

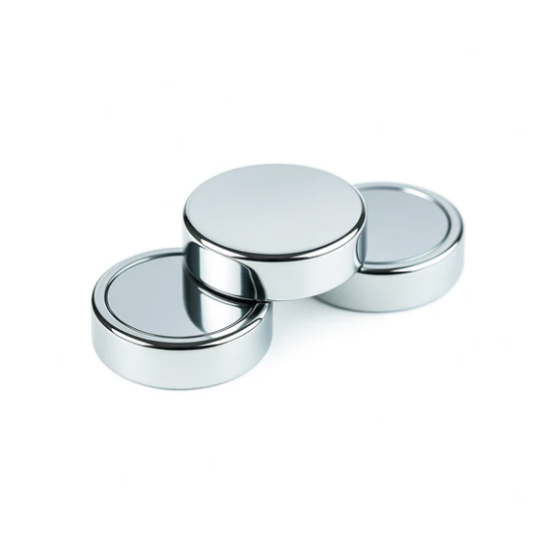

Blind ended Neodymium High Temperature Shallow Pot Magnet
The blind ended Neodymium High Temperature Shallow Pot Magnet is engineered for applications requiring strong magnetic holding, ability at elevated temperatures, and long-term reliability in a compact design. Built around a high‑performance N42SH grade neodymium disc magnet, each unit is encased in a zinc‑plated mild steel cup that enhances magnetic performance, improves corrosion resistance, and provides mechanical protection.
Designed without fixing holes or threads, these blind‑ended pot magnets are intended for press-fit installation, delivering a smooth, seamless finish ideal for flush-mounted, embedded, or aesthetic critical assemblies. Their shallow, low-profile design makes them especially effective in height restricted or precision engineered applications where appearance, alignment, and reliability are essential.
Because the pot is closed at one end, the magnetic field is directed towards the open face, maximising pull force and improving holding capability. While primarily used for press-fit integration, these shallow pot magnets can also be bonded in place and used in applications that involve clamping to a ferromagnetic surface, particularly where the magnet is not intended to be easily accessed or removed.
Durable, compact, and designed for long-term industrial use, our Blind-Ended High Temperature Neodymium Shallow Pot Magnets provide strong, consistent holding performance for fixtures, jigs, mechanical assemblies, positioning systems, and concealed mounting points across engineering and manufacturing environments.
Read more about Pot Magnets
Typical Applications:
Neodymium High Temperature Shallow Pot Magnets are commonly used for:
- Magnetic holding and attachment in high-temperature and engineered environments
- Mounting panels, access covers, and fixtures where low profile and secure holding are needed
- Precision fixturing, tooling, and assembly aids
- Magnetic workholding and positioning fixtures in specialised production setups
- Sensor and instrumentation mounting where stable magnetic positioning is critical
Their combination of compact design and stable magnetic performance makes them ideal for applications where both strength and space efficiency are important.
Why Choose Neodymium High Temperature Shallow Pot Magnets
Neodymium High Temperature Shallow Pot Magnets combine powerful magnetic performance, thermal resilience, and durable construction in a low-profile assembly. The high-energy core provides strong holding force, while the shallow pot housing enhances flux direction and protects the magnet. These magnets are an excellent choice for engineers, designers, and professionals who require reliable magnetic holding and mounting in challenging operating conditions.
Key Benefits
- Powerful neodymium magnet delivers exceptional holding force
- No fixing holes or threads making them ideal for clean, smooth, unobtrusive installations
- Provides enhanced corrosion resistance and protects the magnet while boosting magnetic efficiency
- Perfect for embedded, flush‑mounted, or space‑restricted applications
- Maintains reliable performance in typical industrial operating conditions.
Model Variations
| Product Number | Diameter (mm) | Thickness* (mm) | Weight (g) | Pull force (kg) | Units per pack |
|---|---|---|---|---|---|
| E760NEOSH | 6 | 4.5 | 1 | 0.5 | 20 |
| E761NEOSH | 8 | 4.5 | 1.8 | 1.3 | 20 |
| E762NEOSH | 10 | 4.5 | 2.5 | 2.5 | 20 |
| E763NEOSH | 13 | 4.5 | 4.5 | 6 | 20 |
| E764NEOSH | 16 | 4.5 | 5.5 | 9.5 | 20 |
| E765NEOSH | 20 | 6 | 15 | 14 | 10 |
| E766NEOSH | 25 | 7 | 31 | 20 | 10 |
| E767NEOSH | 32 | 7 | 40 | 35 | 10 |
