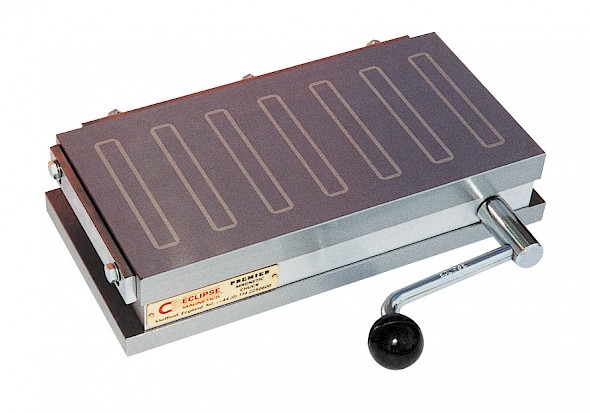

Rectangular Premier Chuck

Premier range grinding chucks provide precision performance

  • For fast, accurate, secure holding of ferrous components
  • Thick all metal top plate - high accuracy and long lifespan
  • High corrosion resistance - resists damage from coolants
  • Unique top plate concentrates magnetic energy on to the chuck face
  • Easy, instant on-off switching - removable operating handle
  • Allows adjustment of position before full hold is engaged
  • Fail-safe permanent magnetic technology

Overview - Rectangular Premier Chuck

Ideal for precision grinding

Premium permanent magnetic chucks for tool room grinding applications. Our premier magnetic chucks set the benchmark in high performance workholding. Guaranteed to retain their magnetism, the premier chucks are manufactured from high performance materials which provide optimum holding power and efficient use of the workholding area. The product design ensures repeated accuracy and a long product lifespan, even in multiple re-grind applications.

Model Variations

Product NumberHeight (mm)Length (mm)Pole pitchWidth (mm)Length (in)Width (in)Height (in)Pole pitch (in)
AX47/P4220317.61277.9951.651.378
AX510/P532763512910.875.082.091.378
AXS618/P634513215117.765.952.481.26
AXS612/P633223215112.685.952.481.26
AXS614/P633603215114.175.952.481.26
AXM824/P636013520124.537.912.481.378
