Magnetic Stands including Magnetic Base & Mounting Arm

Quick and easy attachment, ideal for mounting components

  • For use in mounting dial test indicators in measurement , inspection and positioning applications
  • Simple, secure positioning - measurement made easy
  • Highly durable, quality manufacture
  • Clamp onto curved and flat surfaces
  • Wide range of heavy duty, light duty or flexible fitments and magnetic bases
  • Bases and fitments also available separately

Overview - Magnetic Stands including Magnetic Base & Mounting Arm

Magnetic Bases and Fitment Arm Sets

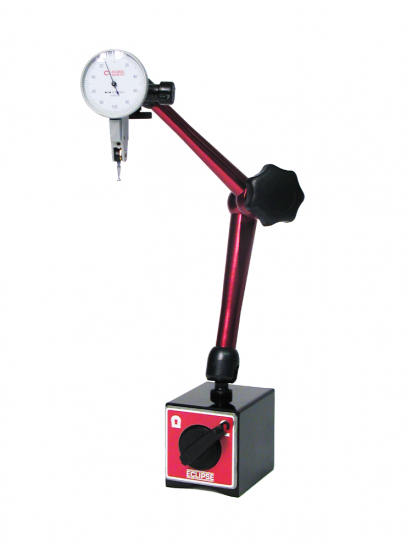

Our magnetic stands consist of a high performance magnetic base and  a fitment arm . Available in a variety of magnetic base and arm combinations they include toggle or push button switching mechanisms to allow easy and secure mounting and release.  Available  with M6, M8 and M10 thread options, the arms and bases are interchangeable.

They are widely used for precision measurement, their rigid, secure positioning coupled with fine adjustment means they can make a significant contribution to ensuring a accurate surface finish measurement. They are commonly used for mounting Dial Test Indicators and Digital Indicators, or supporting gauges. The magnetic bases and fitment arms kits are also used for mounting medical instruments, photographic equipment,  temporary lighting ,sound equipment as well as jigs and general fixings.

Magnetic bases    and fitment arms are available as separate items if  the full set is not required.



Model Variations

Product NumberBase part no.Fitment part no.Fitment typeHold (kg)Switching typeHold (lb)
E901E901WFRP991BLHeavy Duty with Fine Adjustment80Push Button176.37
E901/1E901WFRP901/1Extra Large Heavy Duty80Push Button176.37

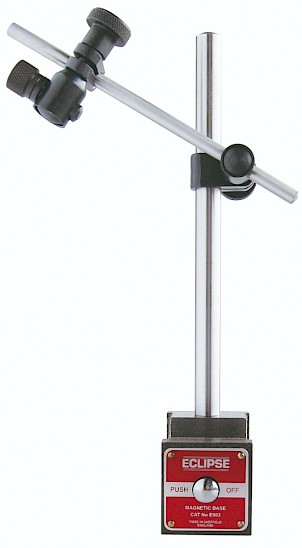

E903CPE900WFRP72CPLight Duty30Push Button66.13
E905E905WFRP995BLHeavy Duty80Lever176.37
E906E905WFRP991BLHeavy Duty with Fine Adjustment80Lever176.37

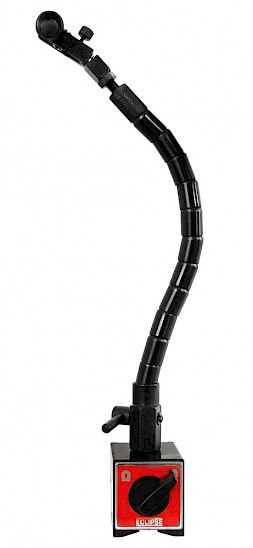

E907ME905WFRP907SFlexible Snake Arm F/A80Lever176.37
E910E905WFRP999Mechanical One Piece80Lever176.37
E909834RP909FITOne Pillar14Non-Switchable30.86
E908ME900WFRP995BLHeavy Duty30Push Button66.13
E910SE905WF/50RP999SSmall50Toggle110
E910E905WFRP999Large80Toggle176
E910LE905WF/130RP999LExtra large/Heavy Duty130Toggle286
