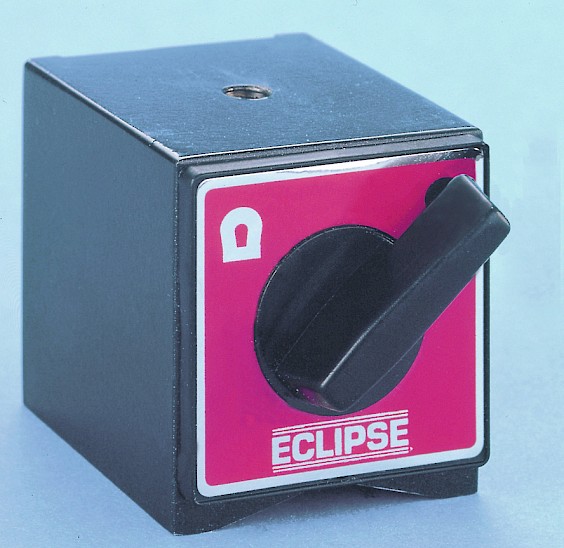

Magnetic Base with Toggle Switch

Ideal for attaching mounting arms to secure measuring or inspection equipment

  • Toggle switched magnetic bases to hold fitment arms for inspection and measurement
  • Can be located on any ferrous surface to provide rigid support
  • Magnetic on 3 sides
  • Can clamp onto curved and flat surfaces
  • A range of fitments also available

Overview - Magnetic Base with Toggle Switch

Versatile and Secure Magnetic Base

These  magnetsic stands or magnetic bases are great option for mounting screw fit components such as  gauging arms, measurement equipment, photography equipment, jigs, fixings  and  lighting. They can be positioned instantly on ferrous surfaces and the toggle switch can be used for fine position adjustment.  Available to suit M6, M8 and M10 screw sizes, they can be supplied with holding forces  up to 130 kg depending on the weight of the component being secured by the magnetic base.

If you require a complete magnetic  base and fitment arm set view our magnet stand sets . For separate mounting arms read more

Model Variations

Product NumberLength (mm)Width (mm)Height (mm)Screw Thread (mm)Hold (kg)Weight (kg)

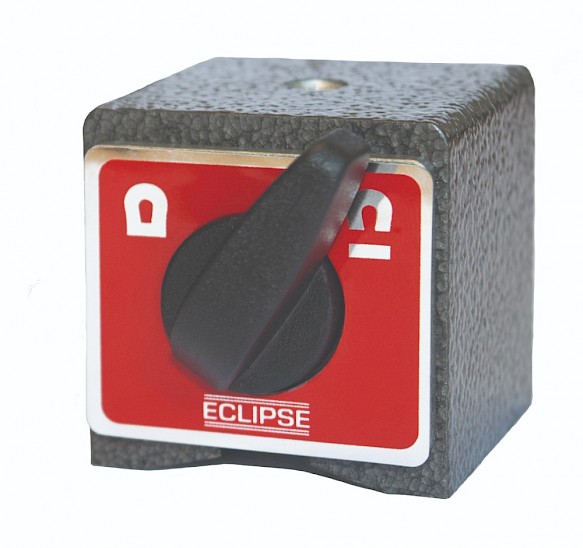

E905WF/50404040M6500.405
E905WF655055M8800.960
E905WF/100755055M81001.200

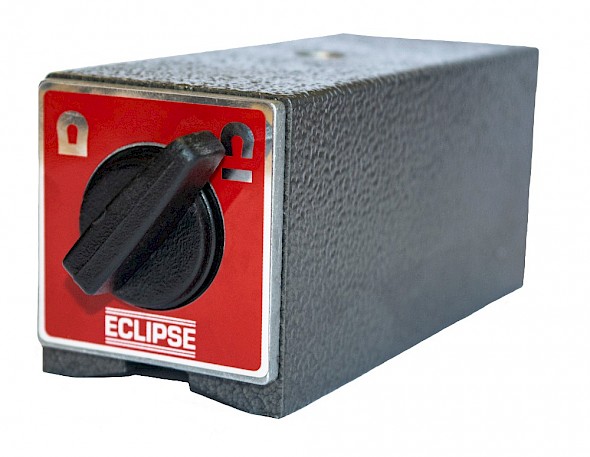

E905WF/1301175055M101301.900
