Fitment arm sets for magnetic bases

Ideal for mounting measuring equipment

  • Rigid, flexible and heavy duty options available
  • Bases are easy to attach and secure
  • Available with fine adjustment crossbar for precise measurement
  • Fitments complete with screw thread for attaching to a magnetic base or direct to machine
  • Also available supplied with a magnetic base

Overview - Fitment arm sets for magnetic bases

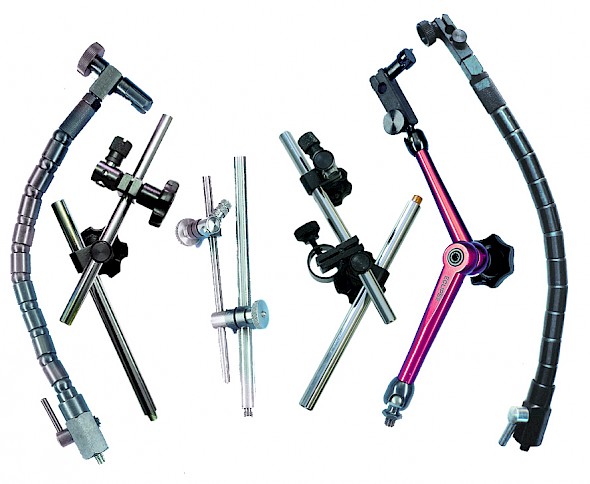

Our mounting arms or gauging arms are suitable for use with magnetic bases. Available in compact, flexible, single pillar or heavy duty options each can be used for a variety of mounting applications such as dial or digital indicators, lighting or optical instruments.  Available with M6, M8 or M10 threads they provide firm support with fine positional adjustment. Read more about our magnetic stand sets

Model Variations

Product NumberCrossbar dia.Crossbar lengthPillar dia.Pillar heightScrew fixingCross dia. (in)Crossbar length (in)Pillar dia. (in)Pillar height (in)
RP72CP6.315012.5185M80.255.90.4927.28
RP991BL1016512175M80.3946.50.4726.89
RP995BL1016512175M846.64.47

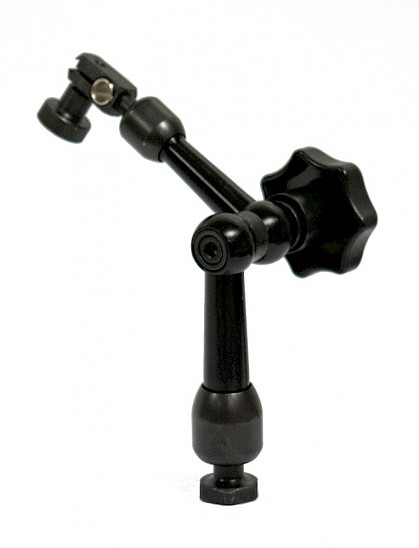

RP999SM6

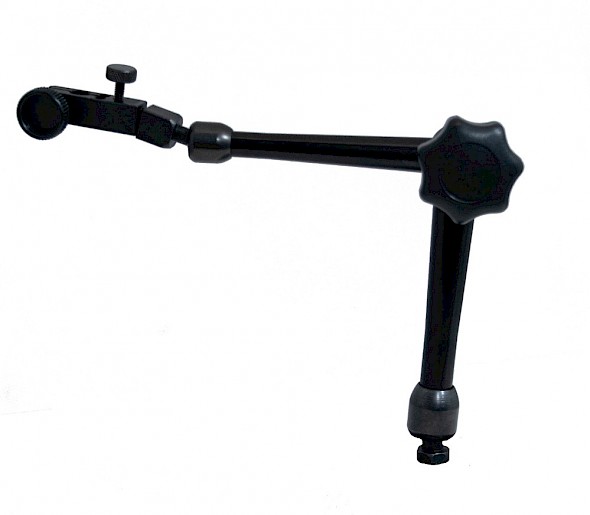

RP999M8

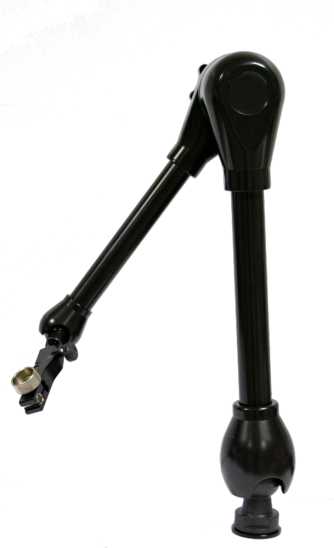

RP999LM10
RP901/11420020300M80.557.870.7911.81

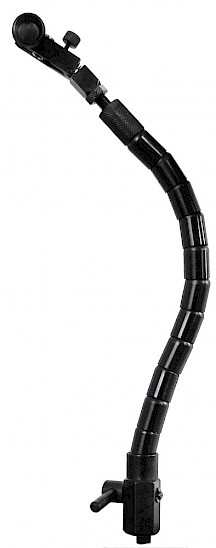

RP907SM8
RP909FITN/AN/A6120M6n/an/a0.244.72
